Wireless transmitter receiver

Wireless transmitter receiver systems

FORBIX SEMICON wireless remote controller

Wireless remote contrller

click to enlarge

FORBIX SEMICON 11 channel transmitter

11 channel transmitter

click to enlarge

FORBIX SEMICON wireless transmitter receiver

Wireless transmitter receiver

click to enlarge

FORBIX SEMICON wireless relay receiver

Wireless remote contrller

click to enlarge


Wireless transmitters

100 meters to 3 Kms range

FORBIX SEMICON produces a wide variety of transmitter models. Starting from 1 channel to as big as 11 channel transmitter receivers. However, transmitters have variations in distance of communication signal range. Moreover, the system needs no wiring or installation. The machines are reliable and does not need any further maintenance. In addition, the range of communication is 2-3 Kms. Due to its long range of communication, it can save cost of electrical wires. Moreover, with multi channel, the solution finds a way in many industrial applications.

7xx series models: caters for 2-3 km distance, whereas
6xx series has a signal range of 100-250 meters

FBX701A: 1 channel transmitter
FBX702A: 2 channel transmitter

FBX710A: 10 channel transmitter
FBX711A: 11 channel transmitter

Moreover, transmitters available are direct button drive or remote control operated.
The wireless transmitter receiver has a rather wide range of applications. Especially in commercial security, industry automation and even life saving devices. Hence, the reliability and robustness of the devices is making them popular among customers.

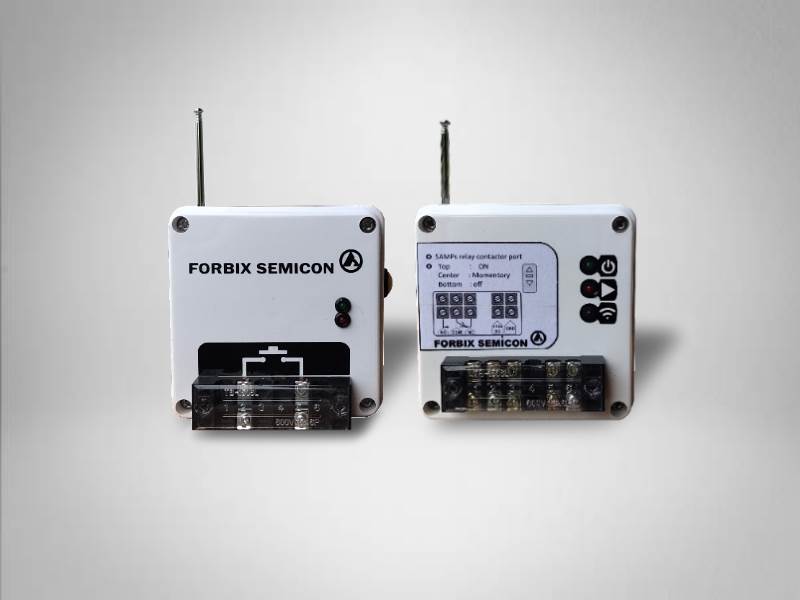

FORBIX SEMICON 1 channel transmitter

1 channel transmitter, FBX701A

click to enlarge

FORBIX SEMICON 11 channel transmitter

11 channel transmitter, FBX7011A

click to enlarge

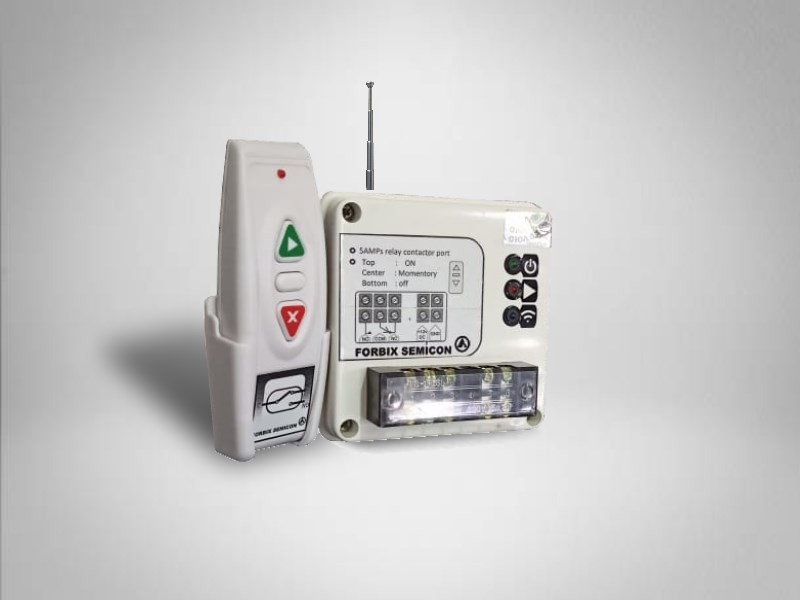

FORBIX SEMICON wireless remote control

Wireless remote control, FBXRC12

click to enlarge

FORBIX SEMICON emergency button

Remote control transmitter, FBX701B

click to enlarge


Wireless receivers

01-11 port receivers

The factory produces receiver units with rather 1 to 11 port relays contactors. However, the relay contactor coems in 2 models: 5 Amps and 30 Amps load capacity. Since the wireless transmitters directly controls the receivers, it is a 1 to 1 combination. However, 1 transmitter to many receiver combination is also possible. In addition, each of the ports individually controlled by the respective transmitter button.

FBXCSR01R5: 1 port 5 Amps receiver compatible to 100m transmitter
FBXCSR01R30: 1 port 30 Amps receiver compatible to 100m transmitter
FBX7R01R5: 1 port 5 Amps compatible with 2-3 Km (7xx series) transmitter
FBX7R01R30: 1 port 30 Amps compatible with 2-3 Km (7xx series) transmitter

FBX7R11R5: 11 channel receiver

The wireless receiver output has rather potential free contactor points. However, every contactor has 3 points, viz. COMMON (COM), Normally Open (NO) and Normally Closed (NC). In idle state, COM and NO points remain connected, whereas, COM and NC electrically short. When a particular port excited from the transmitter, COM and NO now gets connected. Also, COM and NC now gets disconnected.

FORBIX SEMICON 11 port relay receiver

11 port relay receiver, FBX7R11R5

click to enlarge

FORBIX SEMICON 1 port relay receiver

1 port relay receiver, FBXCSR01R5

click to enlarge

FORBIX SEMICON 1 port relay receiver

1 port relay receiver, FBXCSR01R30

click to enlarge


Wiring diagrams

Wireless transmitter receiver wiring diagram

Wireless transmitter receiver wiring diagram is as shown. However, the wiring is very simple. Moreover, it is a replica of 1 port to 11 ports. The signal output rather needs to loop back to the signal input. Hence, every input of the transmitter constitutes to a channel number. And therefore, every channel is 1-to-1 mapped to the corresponding receiver.

FORBIX SEMICON transmitter wiring diagram

Wiring diagram receiver, FBX711A

click to enlarge

FORBIX SEMICON relay receiver wiring diagram

Wiring diagram receiver, FBX7R11R5

click to enlarge
