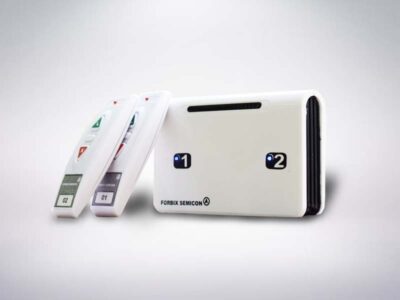

2 remotes wireless call bell for elderly

2 remote + 1 receiver wireless emergency bell for elderly with indicator and beeping sound

Video demo       1-yr. replaceable warranty      Customers

  • 2 remotes, one for each calling person
  • Beeping sound on receiver with adjustable volume control
  • Battery operated handy and lightweight remotes
  • Long signal range to cover whole office
  • Signals can pass through concrete walls, wood, furniture
  • Siren runs on power (110-220vac to 12vdc) adapter with the set
  • Elegant looks, durable, no installation, no wiring, no maintenance



Model: FBXWACS02, 2 remote wireless emergency bell for elderly


  • 2 nos. of wireless emergency bell for elderly
  • Indicator receiver with 2 indicators
  • Signal range 20-30 meters indoors
  • Outdoors range 100-200 meters
  • 85db buzzing sound
  • Each indicator is BLUE color light
  • Remote has 1 red light indicator to indicate button press
  • TOP button: to alert attendant with fast beeping sound
  • BOTTOM button: turn OFF signal / indicator on receiver
  • Center button: to alert attendant with slow beeping sound
  • Adjust the volume just by rotating the knob

Remote power supply:

  • 12 Volt DC battery (at the bottom)
  • Remote battery specifications
    • Model: 23A
    • Life: 2-3 years
    • Type: Alkaline (dry)
    • Replaceable: Yes
    • Rechargeable: No

Siren power supply:

  • 110-220VAC/50-60Hz to 12VDC converter adapter supplied
  • Unit can also be plugged to any 12V external battery.  Active working hours depends on the battery power

Technical specifications of the radio:

  • Transmitter PA: +10dbm
  • Receiver sensitivity: -106dbm
  • Operating frequency: 315– 480 MHz
  • System operates works on signal hop mechanism. Signal transmission happens at more than 12-15 predefined frequencies
  • Modulation type: GFSK
  • Radio IC: CC1100 (Chipcon/TI) and other equivalents in sub-GHz freq.
  • Modulation: GFSK
  • Data packet error correction mechanism: FEC

Dimensions and weight (of 2 remote wireless emergency bell for elderly):

  • Receiver unit size: 100 x 160 x 35 mm
  • Weight: 250 gms
  • Remote controller size:120 x 40 x 20 mm
  • Remote controller weight: 45 gms

Applications for emergency bell for elderly:

  • Wireless emergency bell for elderly
  • Calling patients in OPD, dispensary and clinics
  • Elderly people call bell to summon attendant
  • Alerting attendant using wireless remote controller

Wireless emergency call bell for elderly, is a device solution to alert attendant at home. The elderly person possess a battery operated remote controller. Pressing the remote send RF signals to a distant receiver. The receiver alerts with a buzzing sound and a light glowing indicator. The attendant once aware of the alert, attends the elderly person. On work completion, the attendant can then press the cancel button in the remote. This stops the alert on the receiver unit.
Apart from homes, many hospitals and dispensaries use this system. The devices are robust and long lasting. The complete system needs no installation or wiring. Moreover, the solution is energy efficient. The remote controllers run on battery. Whereas the receiver unit gets power from a 12 volt adapter. The signal range is not confined to house premises. It is possible to improve the signal range to even far distance, with the use of repeater. The repeater is a signal boosting device, that catches feeble remote control signals. It then improves the signal to noise ration (SNR) and forwards on air. An improved SNR can carry the signal to even farther distance. However, it is possible to deploy many repeaters unit for multi-floor arrangement. The signal repeaters comes pre-programmed from the factory. It can keep hopping the signal from source to destination.
The RF signals are capable of penetrating through walls, ceilings, concrete floor. Even wood and glass poses no signal deterioration.
The battery life of the remotes is 3-4 years (and at times, even more). The overall mechanism since works on wireless protocol, needs no installation. The complete setup can start, the next moment it is out of the box. Moreover, the devices need no additional maintenance cost neither any future checkup. It keeps working for many years together.
