Description
Description:

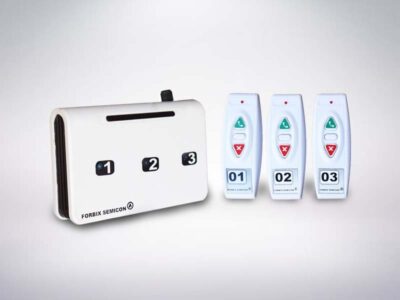

Model: FBXWACS03, 3 remote wireless service call button
Features:
- 3 nos. of wireless service call button
- Indicator receiver with 3 indicators
- Signal range 20-30 meters indoors
- Outdoors range 100-200 meters
- 85db buzzing sound
- Each indicator is BLUE color light
- Remote has 1 red light indicator to indicate button press
- TOP button: to alert attendant with fast beeping sound
- BOTTOM button: turn OFF signal / indicator on receiver
- Center button: to alert attendant with slow beeping sound
- Adjust the volume just by rotating the knob
Remote power supply:
- 12 Volt DC battery (at the bottom)
- Remote battery specifications
- Model: 23A
- Life: 2-3 years
- Type: Alkaline (dry)
- Replaceable: Yes
- Rechargeable: No
Siren power supply:
- 110-220VAC/50-60Hz to 12VDC converter adapter supplied
- Unit can also be plugged to any 12V external battery. Active working hours depends on the battery power
Technical specifications of the radio:
- Transmitter PA: +10dbm
- Receiver sensitivity: -106dbm
- Operating frequency: 315– 480 MHz
- System operates works on signal hop mechanism. Signal transmission happens at more than 12-15 predefined frequencies
- Modulation type: GFSK
- Radio IC: CC1100 (Chipcon/TI) and other equivalents in sub-GHz freq.
- Modulation: GFSK
- Data packet error correction mechanism: FEC
Dimensions and weight (of 3 remote wireless service call button):
- Siren size: 100 x 160 x 35 mm
- Weight: 250 gms
- Remote controller size:120 x 40 x 20 mm
- Remote controller weight: 45 gms
Applications:
- Peon call bell for offices
- Calling patients in OPD, dispensary and clinics
- To summon waiter in restaurant
- Alerting attendant using wireless remote controller
