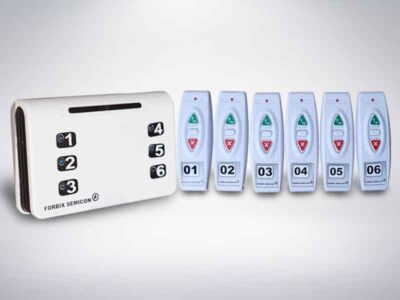

Wireless calling system, 6 remotes

6 remote + 1 receiver with indicator and beeping sound

Video demo       1-yr. replaceable warranty      Customers

  • 6 remotes, one for each calling person
  • Beeping sound on receiver with adjustable volume control
  • Battery operated handy and lightweight remotes
  • Long signal range to cover whole office
  • Signals can pass through concrete walls, wood, furniture
  • Siren runs on power (110-220vac to 12vdc) adapter with the set
  • Elegant looks, durable, no installation, no wiring, no maintenance

Description

Description:

Model: FBXWACS06, 6 remote wireless calling system

Features:

  • 6 nos. of wireless calling system
  • Indicator receiver with 6 indicators
  • Signal range 20-30 meters indoors
  • Outdoors range 100-200 meters
  • 85db buzzing sound
  • Each indicator is BLUE color light
  • Remote has 1 red light indicator to indicate button press
  • TOP button: to alert attendant with fast beeping sound
  • BOTTOM button: turn OFF signal / indicator on receiver
  • Center button: to alert attendant with slow beeping sound
  • Adjust the volume just by rotating the knob

Remote power supply:

  • 12 Volt DC battery (at the bottom)
  • Remote battery specifications
    • Model: 23A
    • Life: 2-3 years
    • Type: Alkaline (dry)
    • Replaceable: Yes
    • Rechargeable: No

Siren power supply:

  • 110-220VAC/50-60Hz to 12VDC converter adapter supplied
  • Unit can also be plugged to any 12V external battery.  Active working hours depends on the battery power

Technical specifications of the radio:

  • Transmitter PA: +10dbm
  • Receiver sensitivity: -106dbm
  • Operating frequency: 315– 480 MHz
  • System operates works on signal hop mechanism. Signal transmission happens at more than 12-15 predefined frequencies
  • Modulation type: GFSK
  • Radio IC: CC1100 (Chipcon/TI) and other equivalents in sub-GHz freq.
  • Modulation: GFSK
  • Data packet error correction mechanism: FEC

Dimensions and weight (of 6 remote wireless calling system):

  • Siren size: 100 x 160 x 35 mm
  • Weight: 250 gms
  • Remote controller size:120 x 40 x 20 mm
  • Remote controller weight: 45 gms

Applications for 6 remote wireless calling system:

  • Peon call bell for offices
  • Calling patients in OPD, dispensary and clinics
  • To summon waiter in restaurant
  • Alerting attendant using wireless remote controller

See related products

Watch all demo videos

Additional information

Weight 1.2 g
Dimensions 100 × 80 × 50 mm
