Wireless Panic Button Transmitter

Description

Description:

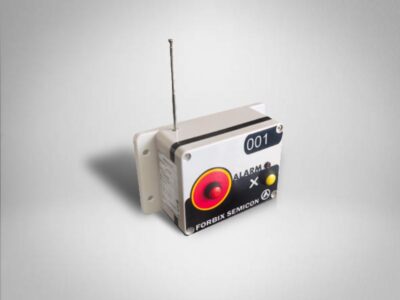

Model: FBX521A Wireless Panic Button Transmitter

Features:

• Press RED button to trigger panic alarm
• Press YELLOW button to deactivate the alarm
• Red light indicator on alarm button press
• Battery operated radio transmitter device
• Buzzer sound on press of any of the buttons (customized)
• Bounce back type of button switches
• Wall mount panic alarm button transmitter
• Metal antenna for range enhancement
• External 12volt long life removable battery

Technical details:

• Transmitter PA +10dbm
• Operating frequency: 380 – 480 MHz
• System operates works on signal hop mechanism
• Signal transmission happens at more than 12-15 predefined frequencies
• Modulation type: GFSK
• Radio IC: CC1100 (Chipcon/TI) and other equivalents in sub GHz freq.
• Modulation: GFSK
• Data packet error correction mechanism: FEC

Operating voltage:

• 12 Volt DC battery (in side the unit)
• Battery model: 23A
• Battery life: 2-3 years
• Battery type: Alkaline (dry)
• Battery replaceable: Yes
• Battery rechargeable: No

Signal transmissions:

• Make sure to press RED panic button for 2-4 seconds for reliable
  transmission. For deactivation, press cancel YELLOW button.
  Signals will continue to transmit as long as the button is kept
  pressed.
• Signal range 100-150 meter outdoors
• Indoors range drops to 30-40 meters

Application and features:

• Panic alarm in buildings (in case of emergency)
• Security alert systems
• Motor pump controllers
• Conveyer belts ON/OFF switch

Precautions and mounting locations:

• Mounted on the top of door / wall
• Easy mounting with 4 screws to secure it tightly
• IP65 enclosure unit, robust and weatherproof
• For indoor purpose use only
• Keep away from metallic enclosures

Dimensions and weight:

• Enclosure type: IP 65 (color grey)
• Size: 190 x 90 x 55 mm
• Weight: 350gms
