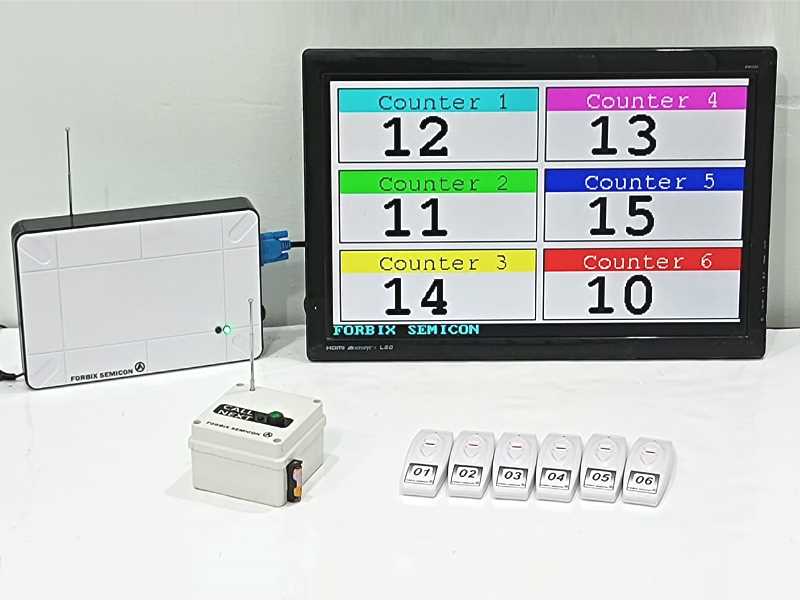

Queue token display for 6 counters
6 queue token management display
Video demo 1-yr. replaceable warranty Customers

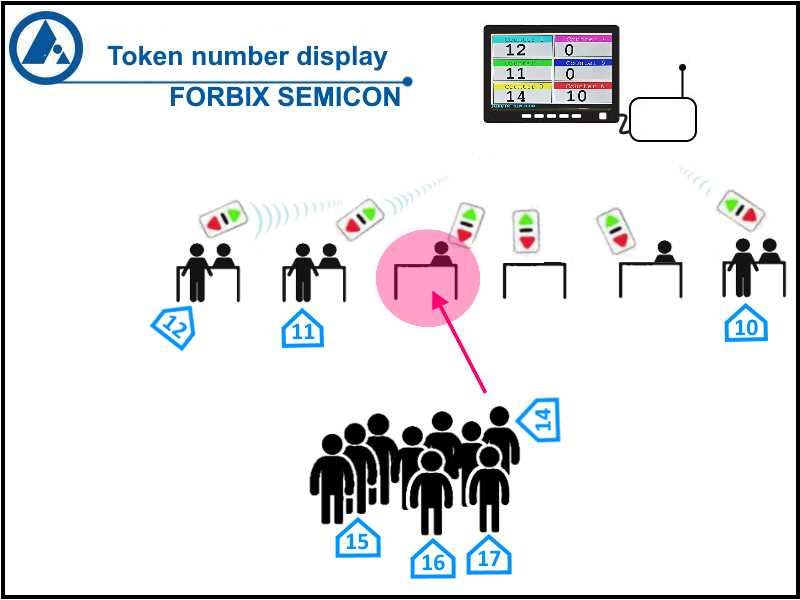

- 6 independent queue token display
- Each room is indicated with a different color
- Pressing remote shows next token number
- Count 000 to 999 and wrap back
- Beep sound alert on number change
- Adjustable volume control
- Battery operated handy and lightweight remotes
- Long signal range to cover 100-300 meters
- Signals can pass through concrete walls, wood, furniture
- Rotating light runs on (110-220vac to 12vdc) adapter with the set
- Elegant looks, durable, no installation, no wiring, no maintenance
Description
Description:
Model: FBXTD02 Wireless token display for OPD up down counter
Features:
- 6 independent queue token display solution
- LCD monitor display to keep a count of individual queues
- Individual wireless RF remote control to control the token numbers for each queue
- Supports 6 non-dependent queues
- Token number display starts from 000 and back to 999
- Remote button functions:
- TOP button: display value increment by +1
- CENTER button: no action (customized)
- BOTTOM button: display value decremented by -1
- Buzzing sound alert on token number change
- Receiver device has internal memory to save and restore the last set of token numbers
- Signal range 20-30 meters indoors
- Outdoors range 100-200 meters
- +85db loud buzzing sound
- Adjust the volume just by rotating the knob
- Remote lock for 3-4 seconds to avoid erroneous long press
Remote power supply:
- 12 Volt DC battery (at the bottom)
- Remote battery specifications
- Model: 23A
- Life: 2-3 years
- Type: Alkaline (dry)
- Replaceable: Yes
- Rechargeable: No
Siren power supply:
- 110-220VAC/50-60Hz to 12VDC converter adapter supplied
- Unit can also be plugged to any 12V external battery. Active working hours depends on the battery power
Technical specifications of the radio:
- Transmitter PA: +10dbm
- Receiver sensitivity: -106dbm
- Operating frequency: 315 – 480 MHz
- System operates works on signal hop mechanism. Signal transmission happens at more than 12-15 predefined frequencies
- Modulation type: GFSK
- Radio IC: CC1100 (Chipcon/TI) and other equivalents in sub-GHz freq.
- Modulation: GFSK
- Data packet error correction mechanism: FEC
Dimensions and weight (of wireless remote control rotating light):
- Receiver display size: 240 x 165 x 45 mm
- Weight: 450 gms
- Remote controller size:120 x 40 x 20 mm
- Remote controller weight: 45 gms
