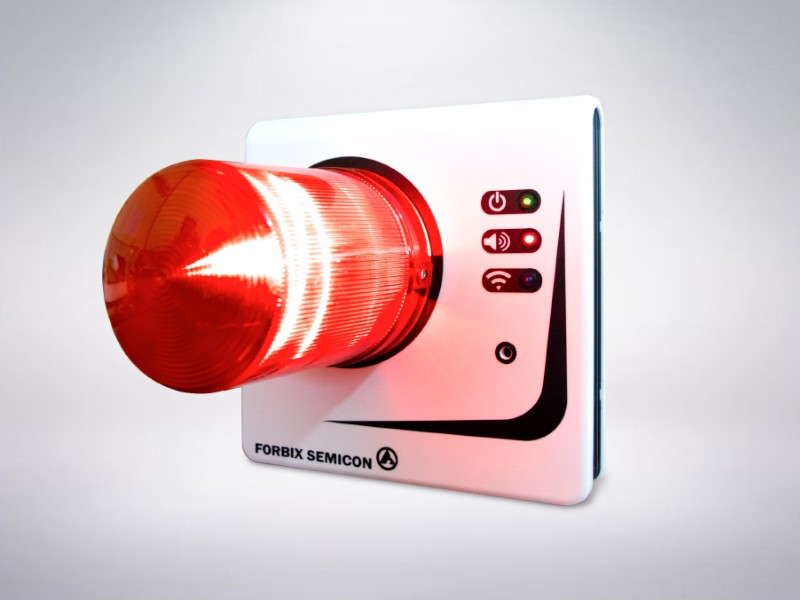

Wireless remote control red beacon rotating light

1 remote + 1 revolving light, for emergency alert and panic alarm

  • Siren audible from even 50 meters distance
  • Adjustable volume control
  • Battery operated handy and lightweight remotes
  • Long signal range to cover 100meters
  • Signals can pass through concrete walls, wood, furniture
  • Rotating light runs on (110-220vac to 12vdc) adapter with the set
  • Elegant looks, durable, no installation, no wiring, no maintenance

Click here to watch demo video

1 year replacement warranty

Customer list

Description

Description:

Model: FBXRB01 Wireless remote control rotating light

Features:

  • Wireless remote control transmitter
  • Receiver with RED color beacon rotating light
  • Signal range 20-30 meters indoors
  • Outdoors range 100-200 meters
  • 85db loud siren
  • GREEN: power on
  • RED: siren ON/OFF state
  • BLUE: indicator BLUE SYNC light to check signal reception
  • Remote has 1 red light indicator to indicate button press
  • TOP button: siren continuously ON
  • BOTTOM button: siren OFF
  • Center button to turn ON the rotating light for a short moment
  • Adjust the volume just by rotating the knob

Remote power supply:

  • 12 Volt DC battery (at the bottom)
  • Remote battery specifications
    • Model: 23A
    • Life: 2-3 years
    • Type: Alkaline (dry)
    • Replaceable: Yes
    • Rechargeable: No

Siren power supply:

  • 110-220VAC/50-60Hz to 12VDC converter adapter supplied
  • Unit can also be plugged to any 12V external battery.  Active working hours depends on the battery power

Technical specifications of the radio:

  • Transmitter PA: +10dbm
  • Receiver sensitivity: -106dbm
  • Operating frequency: 380 – 480 MHz
  • System operates works on signal hop mechanism. Signal transmission happens at more than 12-15 predefined frequencies
  • Modulation type: GFSK
  • Radio IC: CC1100 (Chipcon/TI) and other equivalents in sub-GHz freq.
  • Modulation: GFSK
  • Data packet error correction mechanism: FEC

Dimensions and weight (of wireless remote control rotating light):

  • Siren size: 180 x 180 x 160 mm
  • Weight: 350 gms
  • Remote controller size:120 x 40 x 20 mm
  • Remote controller weight: 45 gms

See related products

Watch all demo videos



Additional information

Weight 1.2 g
Dimensions 100 × 80 × 50 mm
