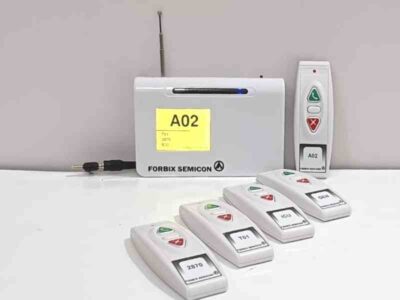

TFT Display Receiver and Remote Controllers
Patient Call Button Remotes + TFT display Nurse Station
Video demo 1-yr. replaceable warranty Customers
- 1 Nurse station receiver console with TFT display
- RF wireless remote controllers (one for each patient bed / washroom)
- Display with predefined set of room/bed numbers
- Device can accommodate 5 simultaneous calling remotes
- Battery operated handy and lightweight remotes
- Long signal range 30-40 meters indoors
- Remote Signals can pass through concrete walls, wood, furniture
- Buzzing sound when button pressed for call
- Elegant looks, durable, no installation, no wiring, no maintenance
- Signal boosters available (on demand), to help enhance the range
Description
Description:
Model: FBXTFT01
Nomenclature: FBX– FORBIX SEMICON®, TFT-Receiver display TFT
Features:
- Wireless remote control patient call button transmitter
- Nurse station with TFT receiver console
- Display the remote numbers when they are called
- Device can stack up to 5 simultaneous calling remotes
- Signal range 20-30 meters indoors
- Outdoors range 100-200 meters
- Buzzing sound on call
- Remote buttons:
- Top GREEN and center button, for call
- Bottom RED button to cancel
- Center button (customized), default call
Note:
- Customized solution available with different contrast background colors
- Predefined specified 3-characgter alpha-numeric numbers
Remote power supply:
- 12 Volt DC battery (at the bottom)
- Remote battery specifications
- Model: 23A
- Life: 2-3 years
- Type: Alkaline (dry)
- Replaceable: Yes
- Rechargeable: No
Nurse station receiver power supply:
- 110-220VAC/50-60Hz to 12VDC converter adapter supplied
- Customization possible for power supply. Unit can be plugged to any 12V external battery.
Technical specifications of the radio:
- Transmitter PA: +10dbm
- Receiver sensitivity: -106dbm
- Operating frequency: 380 – 480 MHz
- System operates works on signal hop mechanism. Signal transmission happens at more than 12-15 predefined frequencies
- Modulation type: GFSK
- Radio IC: CC1100 (Chipcon/TI) and other equivalents in sub-GHz freq.
- Modulation: GFSK
- Data packet error correction mechanism: FEC
Dimensions and weight:
- Receiver console dimension: 160x 100x 35mm
- Display size 2.8 inch TFT display
- Weight: 350 gms
- Remote controller size:120 x 40 x 20 mm
- Remote controller weight: 45 gms
