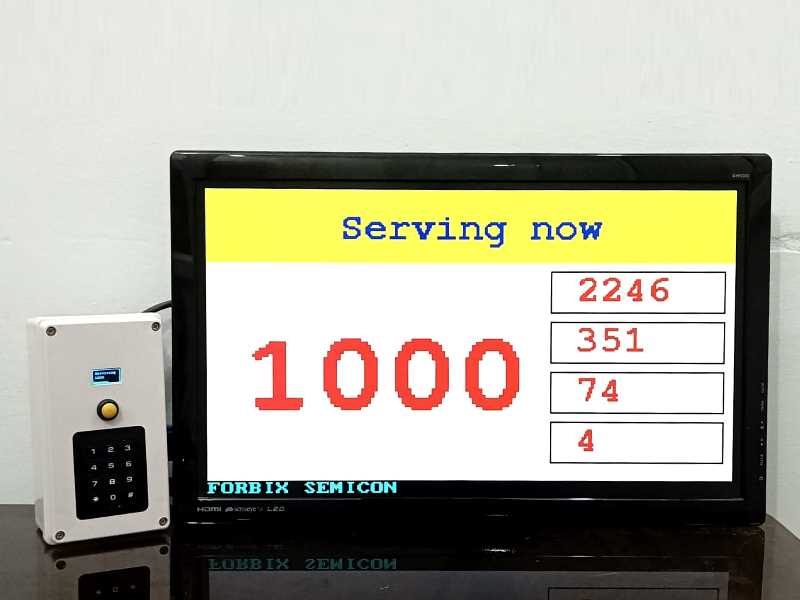

Token Display Keypad
Token display with keypad
Video demo 1-yr. replaceable warranty Customers
- Keypad dialing system to display token numbers
- Token displays on any size of LCD monitor
- 3×4 keypad matrix
- Maximum numeric characters 4-digits (0000 – 9999)
- Capacity to showcase 5 token numbers at any given time
- Restore entries on machine restart (saves the on-display numbers) in internal memory
- VGA connection to LCD monitor display
- Any random number dialed on the keypad will show up on the screen
- It is also possible to dial the next number, without typing the whole number
Description
Description:
Model: FBXTD03 token display with keypad
Features:
- Keypad dialing system to display token numbers on LCD monitor display
- Token displays on any size of LCD monitor
- 1inch OLED display to show the dialed number
- 3×4 keypad matrix
- Additional (yellow color) push button [Optional]
- Capacity to showcase 5 token numbers at any given time
- Restore entries on machine restart (saves the on-display numbers) in internal memory
- Maximum numeric characters 4-digits (0000 – 9999)
- Additional (optional) yellow button to automatically increment present number by 1
- VGA connection to LCD monitor display
- Any random number dialed on the keypad will show up on the screen
- It is also possible to dial the next number, without typing the whole number
- Latest dialed number shows up on the front left big area
Customization:
- Additional push button (yellow color) switch. This button switch can be used to auto-increment the present (ongoing) token number by 1.
Token display supply:
- 110-220VAC/50-60Hz to 12VDC converter adapter supplied
Mounting provisions:
- Can be placed on tabletop
- 2-keyholes on backside of the unit for easy wall mounting provision
Dimensions:
- Keypad transmitter device unit size: 240 x 165 x 45 mm
- Weight: 450-580 gms
