Token display up down counter

 Wireless token display for OPD up down counter

Video demo       1-yr. replaceable warranty      Customers

  • Doctor holds remote & display in waiting hall
  • Pressing remote shows next token number
  • Count 000 to 999 and wrap back
  • Beep sound alert on number change
  • Adjustable volume control
  • Battery operated handy and lightweight remotes
  • Long signal range to cover 100-300 meters
  • Signals can pass through concrete walls, wood, furniture
  • Rotating light runs on (110-220vac to 12vdc) adapter with the set
  • Elegant looks, durable, no installation, no wiring, no maintenance

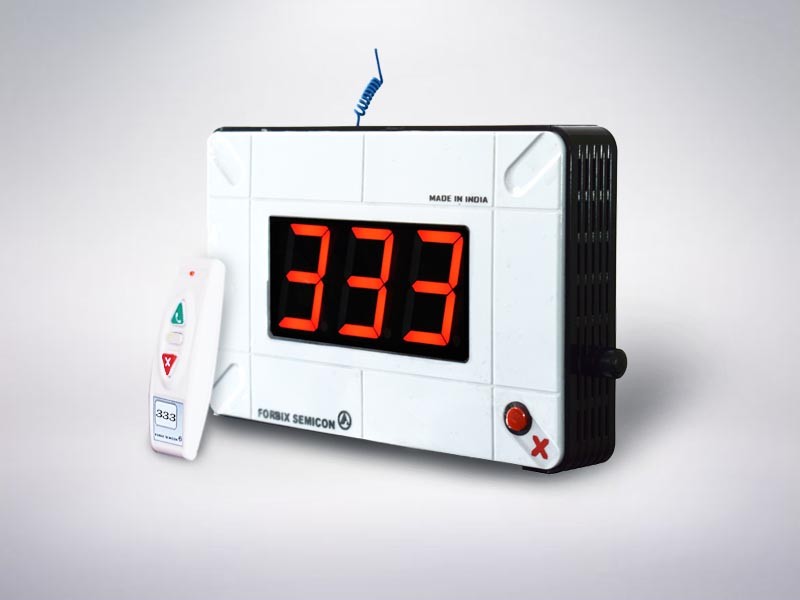

Model: FBXTD01 Wireless token display for OPD up down counter


  • 3 digit 7-segment token display counter
  • Wireless RF remote control to maneuverer the token numbers
  • Supports 1 queue
  • Token number display starts from 000 and back to 999
  • Remote button functions:
    • TOP button: display value increment by +1
    • CENTER button: no action (customized)
    • BOTTOM button: display value decremented by -1
  • Buzzing sound alert on token number change
  • Signal range 20-30 meters indoors
  • Outdoors range 100-200 meters
  • +85db loud buzzing sound
  • Adjust the volume just by rotating the knob
  • Remote lock for 3-4 seconds to avoid erroneous long press


  • The token number resets to 000 on power reboot. No internal memory.

Remote power supply:

  • 12 Volt DC battery (at the bottom)
  • Remote battery specifications
    • Model: 23A
    • Life: 2-3 years
    • Type: Alkaline (dry)
    • Replaceable: Yes
    • Rechargeable: No

Siren power supply:

  • 110-220VAC/50-60Hz to 12VDC converter adapter supplied
  • Unit can also be plugged to any 12V external battery.  Active working hours depends on the battery power

Technical specifications of the radio:

  • Transmitter PA: +10dbm
  • Receiver sensitivity: -106dbm
  • Operating frequency: 315 – 480 MHz
  • System operates works on signal hop mechanism. Signal transmission happens at more than 12-15 predefined frequencies
  • Modulation type: GFSK
  • Radio IC: CC1100 (Chipcon/TI) and other equivalents in sub-GHz freq.
  • Modulation: GFSK
  • Data packet error correction mechanism: FEC

Dimensions and weight (of wireless remote control rotating light):

  • Receiver display size: 240 x 165 x 45 mm
  • Weight: 450 gms
  • Remote controller size:120 x 40 x 20 mm
  • Remote controller weight: 45 gms
