LCD Monitor and Remotes, Pop Display
20 Call Button Remotes + 1 LCD monitor Nurse Station (Customized 24×7 Data-Logger), pop display
Video demo 1-yr. replaceable warranty Customers
- 1 Nurse station receiver with LCD monitor
- 20 remote controllers (one for each patient bed / washroom)
- On a remote press, the corresponding numbers appears on the display
- Display with predefined set of room/bed numbers
- Battery operated handy and lightweight remotes
- Long signal range 30-40 meters indoors
- Remote Signals can pass through concrete walls, wood, furniture
- Alpha numeric names of the rooms (up to 6 characters)
- Buzzing sound when button pressed for call
- Elegant looks, durable, no installation, no wiring, no maintenance
- Customized / optional datalogger to record call times 24×7
- Signal boosters available (on demand), to help enhance the range
Description
Description:
Model: FBXLP20
Nomenclature: FBX– FORBIX SEMICON®, L-LCD Monitor, P-Popped display set, 20-number of sections visible on the LCD.
Features:
- Wireless remote control patient call button transmitter
- Nurse station with LCD receiver (with VGA connection)
- Display with predefined set of room numbers [20], but none will be visible till the call button is pressed.
- Signal range 20-30 meters indoors.
- Outdoors range 100-200 meters.
- Buzzing sound on call.

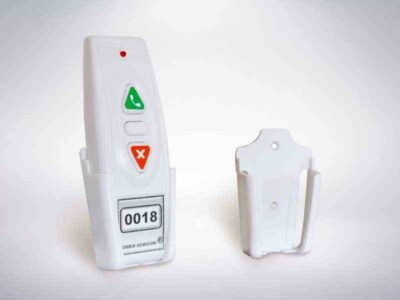

- Remote buttons:
- Top GREEN and center button, for call
- Bottom RED button to cancel
- Center button (customized), default call
- Customized designs for 24×7 inbuilt datalogger (check with sales personal for such devices)
- Inbuilt Real-Time-Clock (RTC)
- Inbuilt SDCard
- Continuously logs (records) incoming calls and corresponding time
- The device launches its own WiFi hotspot.
- To download the log files url: http://192.168.1.1
- This webpage enables to synchronize the RTC to computer time
- Logfiles are named on present date dd-mm-yy.csv
- A sequence of self-test bootup messages shows up on power up, SDCard status, RTC sync, and many more.
- Customized designs for call escalation and purging
- Escalation: Calls will remain pending for a set duration before appearing on screen. Two screens are recommended: one for standard call display and another for escalated calls. If a call remains unattended for the specified time, it will automatically transition to the escalation screen.
- Purge: If a call remains unattended it automatically is removed from the screen after a preprogrammed time.
Note:
- Customized solution can support more than 20 remote calling points (only latest 20 called numbers will be visible on the screen)
- The receiver can support variable size of LCD monitors. VGA connection on the screen is mandatory)
Remote power supply:
- 12 Volt DC battery (at the bottom)
- Remote battery specifications
- Model: 23A
- Life: 2-3 years
- Type: Alkaline (dry)
- Replaceable: Yes
- Rechargeable: No
Nurse station receiver power supply:
- 110-220VAC/50-60Hz to 12VDC/5VDC converter adapter supplied
- Customization possible for power supply. Unit can be plugged to any 12V external battery. Active working hours depends on the battery power. Or even a 5V USB battery power bank
Technical specifications of the radio:
- Transmitter PA: +10dbm
- Receiver sensitivity: -106dbm
- Operating frequency: 380 – 480 MHz
- System operates works on signal hop mechanism. Signal transmission happens at more than 12-15 predefined frequencies
- Modulation type: GFSK
- Radio IC: CC1100 (Chipcon/TI) and other equivalents in sub-GHz freq.
- Modulation: GFSK
- Data packet error correction mechanism: FEC
Dimensions and weight (of wireless remote control siren):
- Receiver console dimension: 240 x 165 x 45 mm
- Display (each unit size ) 48 x 65 mm
- Remote controller size:120 x 40 x 20 mm
- Remote controller weight: 45 gms
