Wireless Pull Chord Button Transmitter
Wireless Pull Chord Button Transmitter
1-yr. replaceable warranty Customers
- Pull chord for calling and a button to for cancellation
- Pull string to CALL (in emergency)
- Red button to make call (alternative push button arrangement)
- Yellow button on the side top to CANCEL the ongoing call
- 30-40 meters indoors (depending on environmental condition)
- 100-150 meters outdoors (in open line of sight)
Description
Description:

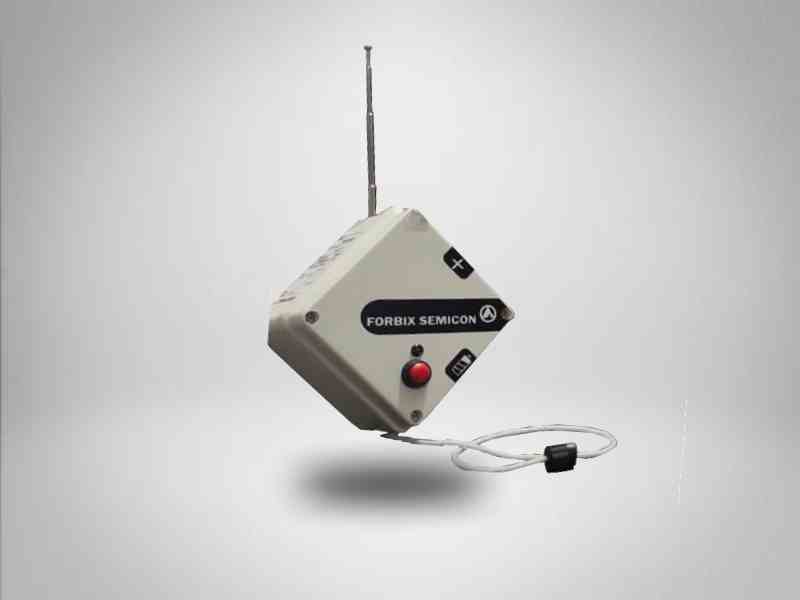

Model: FBX528A Wall mount wireless pull chord button
Features:
- Pull chord for calling and a button to for cancellation
- Pull string to CALL (in emergency)
- Red button to make call (alternative push button arrangement)
- Yellow button on the side top to CANCEL the ongoing call
- 1 Blue light indicator glows on call button press
- Buzzing sound on press of any of the CALL buttons
Technical details:
- Transmitter PA +10dbm
- Operating frequency: 315 – 480 MHz
- System operates works on signal hop mechanism.
- Signal transmission happens at more than 12-15 predefined frequencies
- Modulation type: GFSK
- Radio IC: CC1100 (Chipcon/TI) sub-GHz frequency
- Data packet error correction mechanism: FEC
Battery and operating voltage:
- 12 Volt (DC battery)
- Battery model: 23A
- Battery type: Alkaline (dry)
- Battery replaceable: Yes
- Battery rechargeable: No
- Battery mounting: Back cover
- Battery life: 3-4years, depending on the usage
RF antenna:
- PCB trace antenna / wire coil antenna / metal antenna (depends on environment necessity
Mounting provisions:
- Wireless wall mount calling button needs to secured on the wall or any vertical surface using 4 screws
Precautions and mounting locations:
- Mounted on the top of door / wall / bed
- Easy mounting with 4 screws to secure it tightly
- Keep away from metallic enclosures
- Do not expose battery to water and moisture
- Do not pull the chord to hard to break the internal mechanical arrangement
Range of communication:
- 30-40 meters indoors (depending on environmental condition)
- 100-150 meters outdoors (in open line of sight)
- Pulling the chord at least 2-3 seconds improves the range of communication
Dimensions and weight:
- Enclosure type: ABS plastic (color white)
- Size: 100 x 100 x 70 mm
- Weight: 190 gms
Application and features:

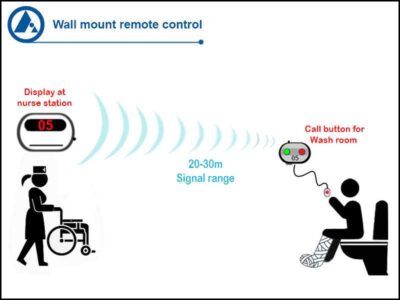

- Pull chord buttons for beds / washrooms / toilets
- Nurse call system for hospitals: remote with patients
- OPD token system for dispensaries: remote with doctors
- Office peon calling system: remote with clerk / manager

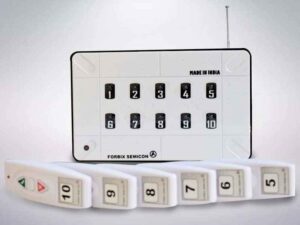

- Guest house attendant call unit: remote with customers in room
