Wireless remote control for water pump

Description

Description:

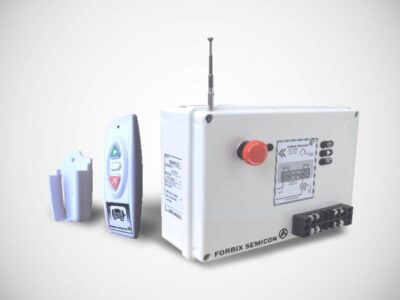

Model: FBXPC01A Wireless remote control for water pump

Features:

• Wireless remote, controls the water pump from a distance
• Receiver with 30 Amps potential free contact points
• Signal range 20-40 meters indoors (depends on architecture)
• Outdoors range 100-150 meters
• Remote control buttons:
  • GREEN button: motor on
  • RED button: motor off
• Remote has 1 red light indicator to indicate button press
• Receiver has manual button to turn on/off the motor
• Metal antennas to improve the range further
• Receiver connection diagram on the unit
• IP65 enclosure for the receiver

Remote power supply:

• 12 Volt DC battery (at the bottom)
• Remote battery specifications
  • Model: 23A
  • Life: 2-3 years
  • Type: Alkaline (dry)
  • Replaceable: Yes
  • Rechargeable: No

Motion sensor and siren power supply:

• 110-220VAC/50-60Hz to 12VDC converter adapter supplied
• Unit can also be plugged to any 12V external battery.  Active working hours depends on the battery power

Technical specifications of the radio:

• Transmitter PA: +10dbm
• Receiver sensitivity: -106dbm
• Operating frequency: 380 – 480 MHz
• System operates works on signal hop mechanism. Signal transmission happens at more than 12-15 predefined frequencies
• Modulation type: GFSK
• Radio IC: CC1100 (Chipcon/TI) and other equivalents in sub-GHz freq.
• Modulation: GFSK
• Data packet error correction mechanism: FEC

---

Dimensions and weight (of wireless remote control for water pump):

• Receiver unit size: 195 x 90 x 50 mm
• Weight: 300 gms
• Remote controller size:120 x 40 x 20 mm
• Remote controller weight: 45 gms

---

Applications for wireless remote control for water pump:

• Remote operated water pumps from a distant location
• Industrial automation for motor ON/OFF
• Receiver can trigger manually as well
• Wireless lights ON/OFF, gate/shutter open close
