Wireless RF Remote Controller
Wireless RF Remote Controller
Video demo 1-yr. replaceable warranty Customers
- Wireless RF 3 buttons remote controller
- Top button (ON) => send ON/CALL signal to the receiver
- Bottom button (OFF) => send OFF/CANCEL signal
- Center button (optional), function of which can be altered as per application requirement
- 30-40 meters indoors (depending on environmental condition)
- 100-150 meters outdoors (in open line of sight)
Description
Description:

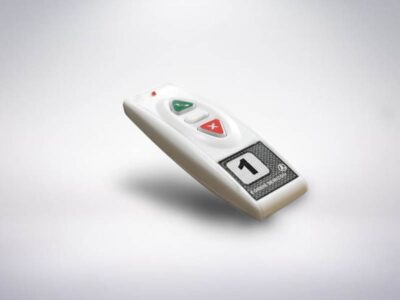

Model: FBX521 Wireless RF Remote Controller
Features:
- 3 buttons RED light indicator, glows when any button is pressed
- Top button (ON) => send ON/CALL signal to the receiver
- Bottom button (OFF) => send OFF/CANCEL signal
- Center button (optional), function of which can be altered as per application requirement
Technical details:
- Transmitter PA +10dbm
- Operating frequency: 315 – 480 MHz
- System operates works on signal hop mechanism.
- Signal transmission happens at more than 12-15 predefined frequencies
- Modulation type: GFSK
- Radio IC: CC1100 (Chipcon/TI) sub-GHz frequency
- Data packet error correction mechanism: FEC
Battery and operating voltage:
- 12 Volt (DC battery)
- Battery model: 23A
- Battery type: Alkaline (dry)
- Battery replaceable: Yes
- Battery rechargeable: No
- Battery mounting: Back cover
- Battery life: 3-4years, depending on the usage
RF antenna:
- PCB trace antenna / wire coil antenna / metal antenna (depends on environment necessity
Mounting provisions:
- Remote controller can be carried in hand or mounted on the wall
using a jacket provided along with the package
Precautions and mounting locations:
- Remotes can be hand operated or mounted on the a door / wall / bed / table or any flat surface
- Easy mounting of remote jacket with 2 screws
- For indoor purpose use only
- Keep away from metallic enclosures
- Do not connect the battery in opposite direction
Range of communication:
- 30-40 meters indoors (depending on environmental condition)
- 100-150 meters outdoors (in open line of sight)
- Pressing the button for at least 2-3 seconds
- improves the range of communication
Remote controller unit:
- Enclosure type: ABS plastic (color white)
- Remote controller size:120 x 40 x 20 mm
- Remote controller weight: 45 gms
Application and features:
- Nurse call system for hospitals: remote with patients
- Steam bath sauna rooms / spas / restaurants etc.
- OPD token system for dispensaries: remote with doctors
- Office peon calling system: remote with clerk / manager
- Guest house attendant call unit: remote with customers in room
