Wireless Peon Call Bell & Attendant Calling Systems

Professional wireless peon call bell systems for offices, restaurants, and hospitals. In addition, we offer multi-remote systems (2–32 remotes), manager-peon setups, and OPD calling. Furthermore, all run on battery with instant alerts and no wiring.

Nurse Call Systems Peon Call Overview Watch Demo

What this page covers

This page describes wireless peon call bell and attendant systems. For example, multi-remote (2–32), manager-peon, and OPD calling. In brief, no wiring and battery-operated remotes.

Key points

Compare Models at a Glance

Use the table below to compare models, capabilities, and ideal use. For more detail, see the product catalog.

Model Key Features
FBXWACS02-062–6 remote call buttons with attendant indicator. Receiver size: 160 × 100 × 35 mm
FBXWACS07-097–9 remote call buttons. Corridor indicator, multi-zone, indicator display. Receiver size: 180 × 180 × 35 mm
FBXWACS10-3210–32 remote controllers. Scalable, zone ID, table numbers. Receiver size: 240 × 165 × 45 mm
FBXWACS-C101Customized solution: 8 zone priority calling, mutiple color LED indicator (as per priority). Vertical mounting receiver, size: 240 × 165 × 45 mm
FBXWACS-C102Customized solution: 1 remote controller, 2 receivers. Top button to call a receiver and bottom button to call the second one
FBXWACS-C103Customized solution: 1 transmitter with 6 call buttons, 3 receivers.
FBXWACS-C104Customized solution: Supports 5 remotes. Programmable prefixed based indicator switching, room vacant -> active
FBXWACS-C1051 transmitter, multiple handheld receivers. Handy receivers with audible alerts
FBXWACS-C106Customized solution: 3 remote call buttons, 1 handheld receiver. Battery operated receiver with neck tag hang
FBXTFT055 remotes alert buttons. Receiver with TFT display. Display size 2.8" inches.

Product Catalog & Specifications

Product Images Model Number Key Features

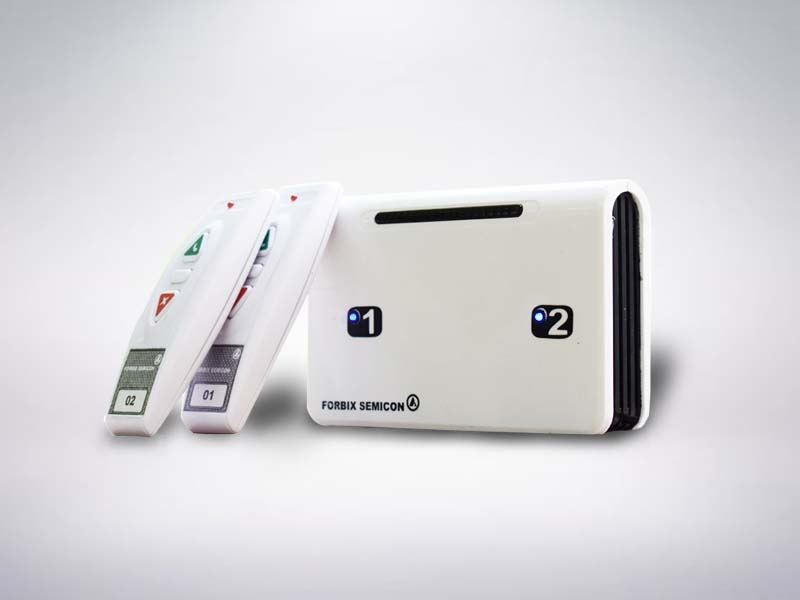

2-6 Remote Caregiver Call System
2-6 Remote Caregiver Call System
2-6 Remote Caregiver Call System

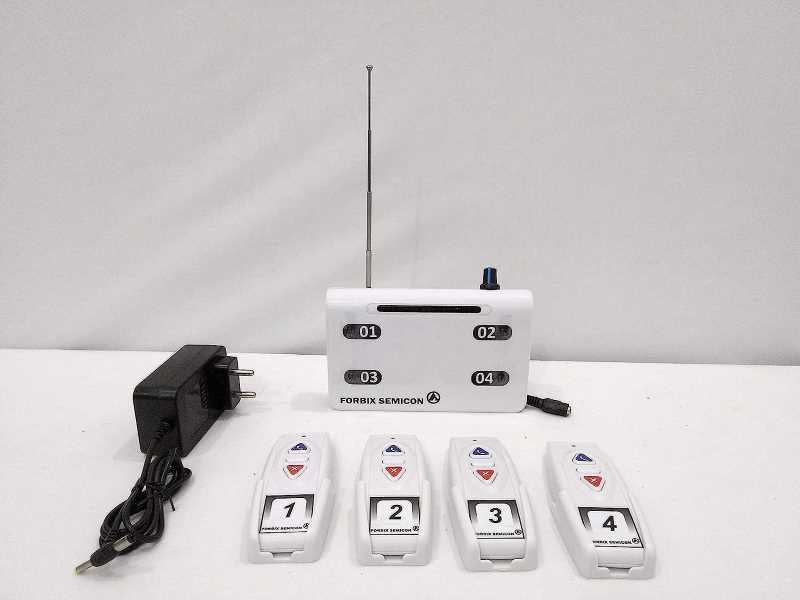

4 Remotes Peon Call Bell

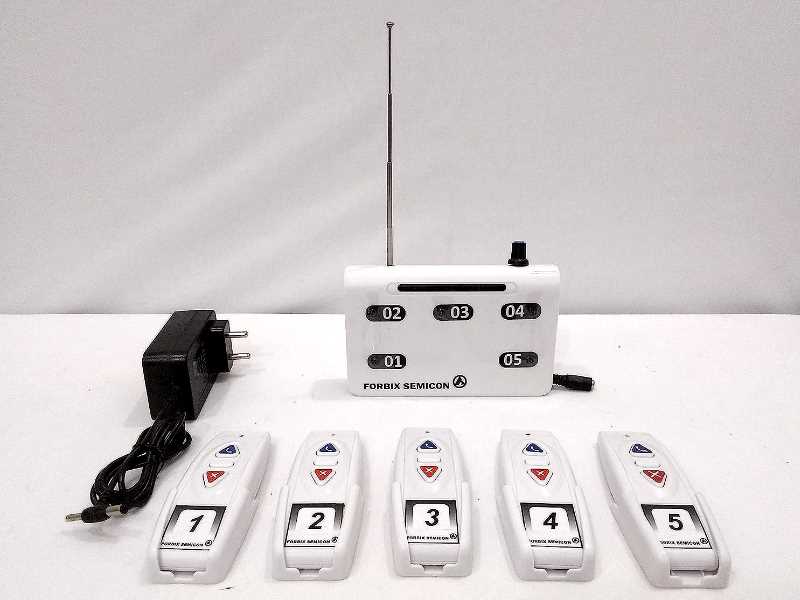

5 Remotes Peon Call Bell

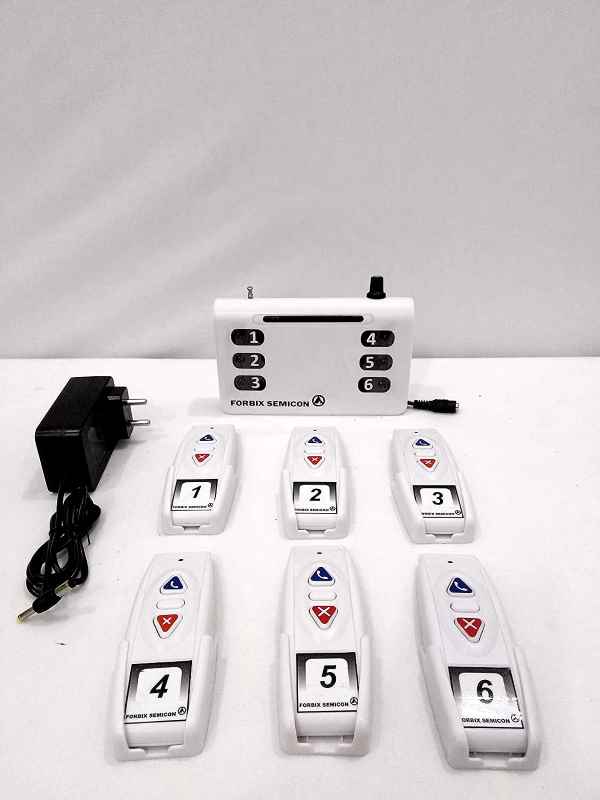

6 Remotes Peon Call Bell

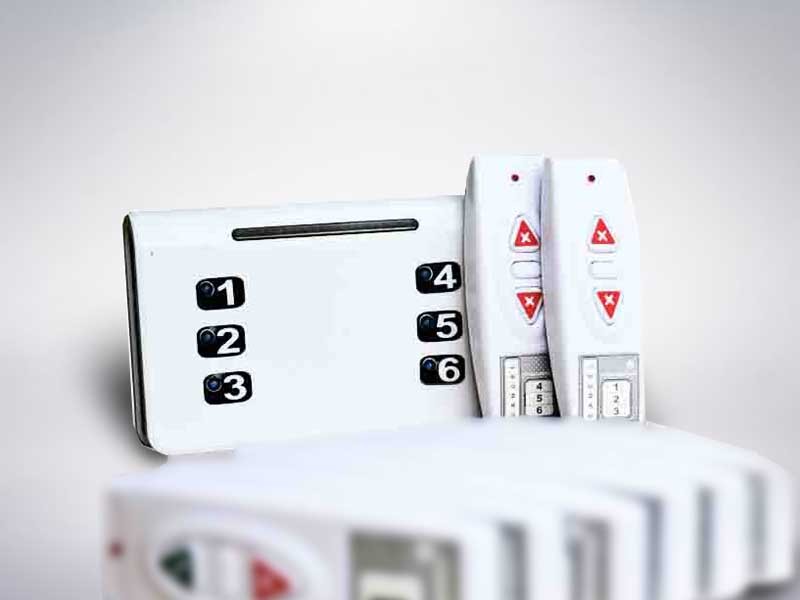

6 Remote Peon Call Bell with Cancel
Wireless Peon Call Bell for Office
FBXWACS02-06
  • 2-6 remote call buttons for caregiver communication
  • Wireless RF transmission in free ISM band 380-480MHz
  • Battery-operated remotes with 2-4 years battery life
  • Central receiver with audible and visual alerts
  • 30-40 meters indoor range, expandable with repeaters
  • Ideal for senior living facilities and assisted care
  • Instant alert response with call cancel functionality
  • No wiring required, easy installation
Watch 6 Indicator Call Bell Video Watch 4 Indicator Call Bell Video

7-9 Remotes Peon Call Bell
7-9 Remotes Peon Call Bell System
FBXWACS07-09
  • 7-9 remote call buttons for office and commercial use
  • Wireless peon call bell system with corridor indicator
  • Multi-zone calling capability for different departments
  • Battery-operated remotes with long-lasting power
  • Central receiver with LED indicators
  • 100-300 meters outdoor range, 30-40m indoor
  • Perfect for offices, restaurants, and service industries
Watch 8 Indicator Wireless Calling System

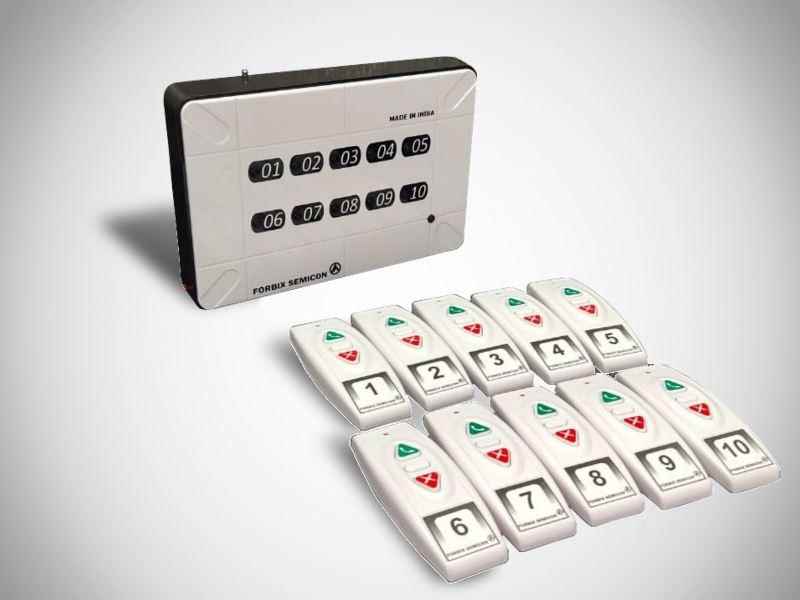

10-32 Remotes Wireless Attendant Call Bell
10-32 Remotes Wireless Attendant Call Bell System
FBXWACS10-32
  • Scalable system supporting 10-32 remote call buttons
  • Large-scale attendant calling for hotels and hospitals
  • Multi-channel receiver with zone identification
  • Wireless RF technology with signal repeaters support
  • Numeric display showing calling room/zone number
  • LED indicators and audible alarms for instant alerts
  • Expandable range up to entire building complexes
  • Battery-operated remotes with 2-4 years lifespan
Watch 10 Indicator System Video Watch 32 Indicator System Video

Customized Solution: 8 Zone Priority Calling

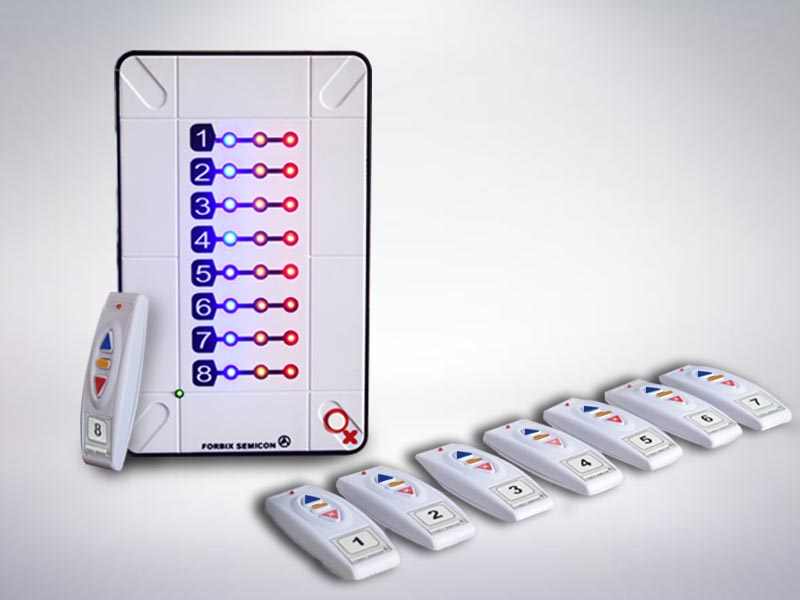

8 Manager Multiple Service Request System
FBXWACS-C101
  • 8-zone priority calling customized solution
  • Multiple color LED indicators based on configured priority
  • Vertical mounting receiver design for easy wall installation
  • Receiver size: 240 × 165 × 45 mm
  • Suitable for facilities requiring clear visual priority alerts

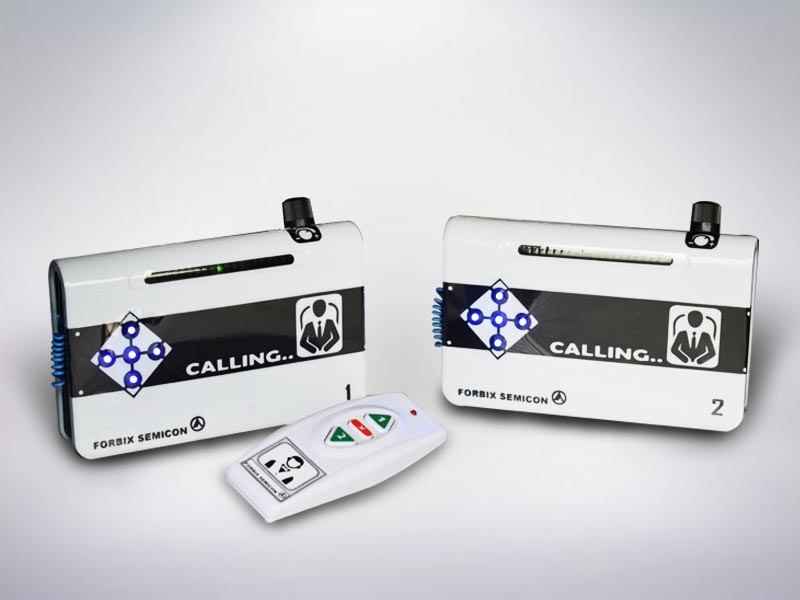

Customized Solution: 1 Remote, 2 Receivers
1 Manager 2 Peon Call System
FBXWACS-C102
  • Single remote controller with two independent receiver calls
  • Top button calls the first receiver
  • Bottom button calls the second receiver
  • Customized workflow for split-room or dual-desk applications
  • Wireless operation with simple user control
Watch 1 Remote 2 Receiver Set Video

Customized Solution: 1 Tx, 6 Buttons, 3 Rx

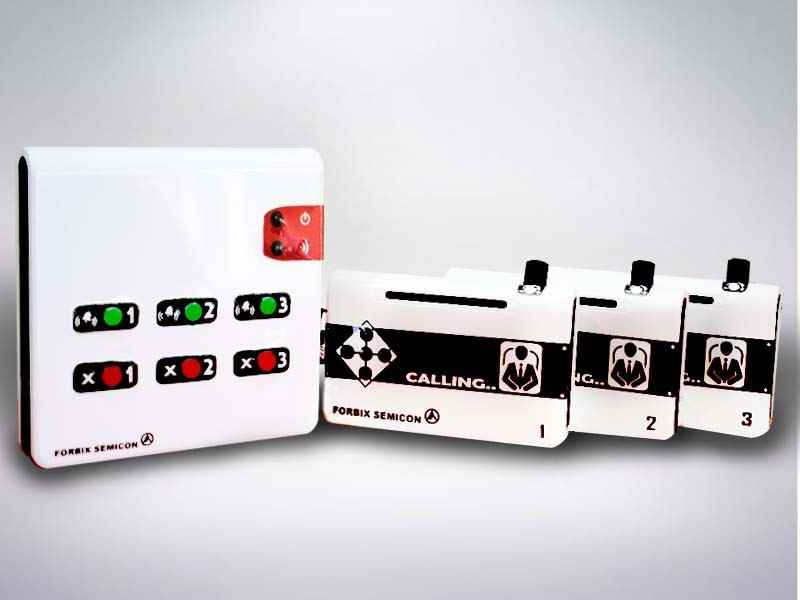

1 Manager 3 Peon Call System
FBXWACS-C103
  • One transmitter with six call buttons and three receivers
  • Customized multi-receiver routing from a single transmitter
  • Supports compact multi-point service call workflows
  • Wireless architecture for easy deployment
Watch 1 Manager 3 Staff Calling System Watch 1 Manager 3 Staff Receiver Explanation

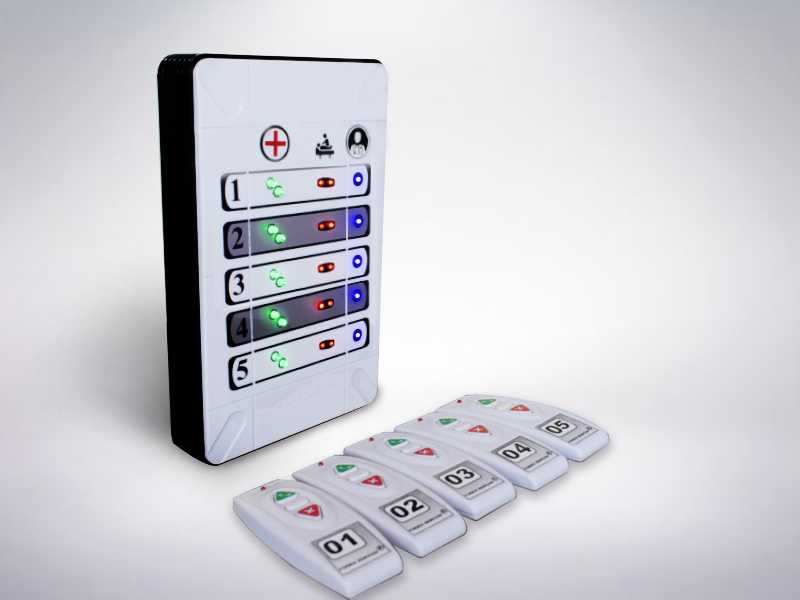

Customized Solution: 5 Remotes with Prefixed Logic
OPD Calling System for 5 Rooms
FBXWACS-C104
  • Customized solution supporting 5 remotes
  • Programmable prefixed based indicator switching
  • Status transition logic: room vacant to active indication
  • Built for custom room-status or queue scenarios

Customized Solution: 1 Tx, Multiple Handheld Rx

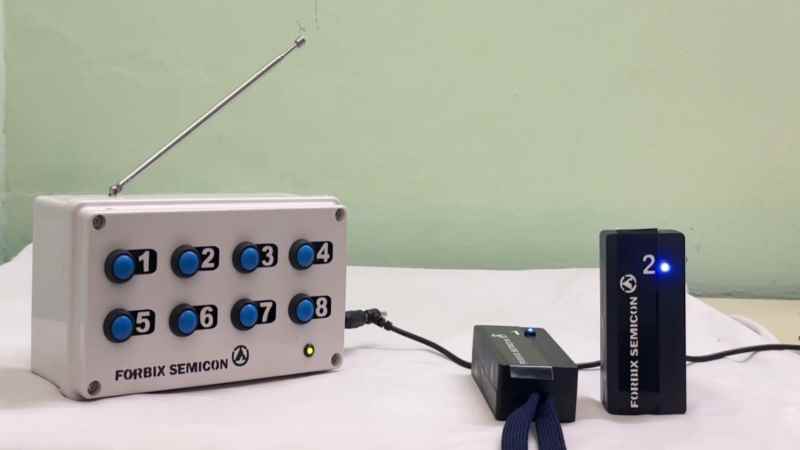

1 Transmitter Multiple Handheld Receivers
FBXWACS-C105
  • One transmitter with multiple handheld receivers
  • Handy receivers with audible alerts for fast response
  • Designed for teams requiring portable call notifications
  • Wireless architecture suitable for mobile staff operations
Watch Transmitter and Handheld Receiver Video

Customized Solution: 3 Remotes, 1 Handheld Rx
3 Remote 1 Handheld Receiver System
FBXWACS-C106
  • Customized solution with 3 remote call buttons and 1 handheld receiver
  • Battery-operated handheld receiver with neck-tag hanging option
  • Compact and wearable receiver for mobile attendants
  • Wireless call notification for flexible movement in service areas

5 Remotes with TFT Receiver
5 Remotes with TFT Receiver System
FBXTFT05
  • 5 remote call buttons with advanced TFT display receiver
  • Color TFT LCD screen showing calling zone information
  • Enhanced visual display with room/zone identification
  • Wireless RF communication in free ISM band
  • Battery-operated remotes with 2-4 years battery life
  • High-resolution TFT display with backlight
  • 30-40 meters indoor range
  • Premium solution for modern offices and commercial spaces
Watch 5 Remote TFT Display System Video

FAQs on Wireless Peon Call Bells

What is a wireless peon call bell system?

A wireless system of remote call buttons and a central receiver. As a result, staff can summon attendants with one press. In addition, it is used in offices, restaurants, and hospitals. No wiring; battery remotes with instant alert.

How many remotes can a peon call system have?

We offer systems from 2 to 32 remotes. For example, 2–6 caregiver, manager-peon, OPD calling, and handheld receivers.

What is the range of wireless peon call bells?

Indoor range is typically 30–40 m. Furthermore, range can be extended with signal repeaters for larger buildings.

Do the remotes need wiring or mains power?

No. Remotes are battery-operated. In brief, battery life is 2–4 years; the central receiver uses adapter or mains.

Can peon call systems be used in hospitals or OPD?

Yes. They are used in OPDs, clinics, and hospitals for staff-to-staff calls. Similarly, they suit caregiver calling in elderly care.
