Wireless Motor Control manufactured by FORBIX SEMICON®

The FORBIX SEMICON® Wireless Remote Motor Control System enables users to trigger pumps and motors from a distance, offering solutions for short range (100-150m) and long range (1-3Km) applications with both direct drive and DOL starter compatibility

play_circle Watch Videos build Installation description Technical Docs download Download Catalog

Browse other Products & Solutions

devices
Nurse Call
notifications
Panic Alarm
connect_without_contact
Peon Call
videogame_asset
Token Display
traffic
Traffic Light
router
Transmitter Receiver
heat_pump
Motor Control
cell_tower
Long Range
air
Air Quality

Remote Motor Control Introduction

Wireless remote motor control mechanism allows users to trigger pump from a distance.

FORBIX SEMICON produces solution in 3 segments. First is the short range device and the second the long range. The short range remote motor control system allows to maneuver from 100-150 meters. Whereas, distances over 1Km catered by long range solutions. The motor control receiver comes in two variations. One is a direct drive and the other is a DOL drive. Usually less an 2HP motors falls in the category of direct drive. DOL starter in, more than 2HP capacity section. And lastly, remote control to steer the an AC / DC motor in forward / reverse direction.

Remote Motor Control Categorization

Wireless signal range:
  • ~100-150 meters
  • 1-3Kms
Motor pump capacity:
  • Less than 2HP (receiver direct drives the motor)
  • More than 2HP (receiver drives DOL starter)
Motor trigger:
  • Water pump ON/OFF
  • Electric motor (AC/DC) forward reverse

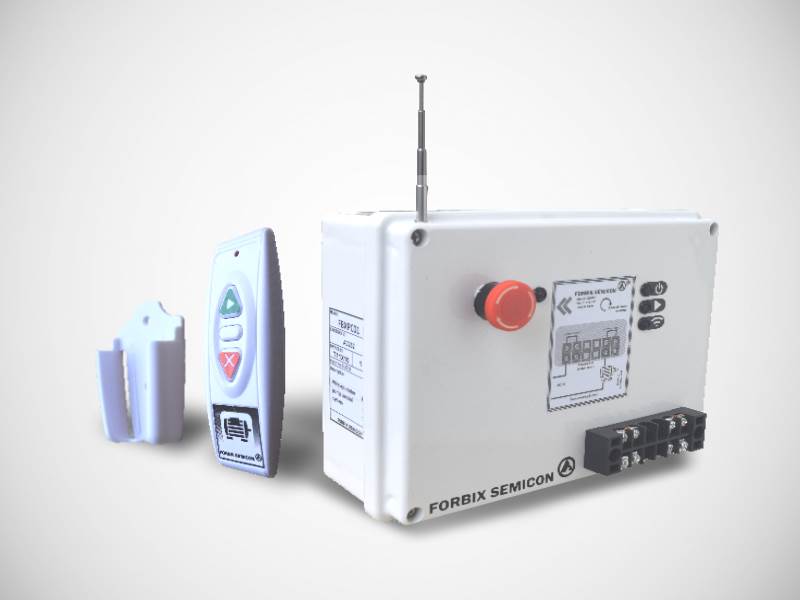

Remote Control Motor Direct Drive
Remote Pump Controller Remote Pump Control

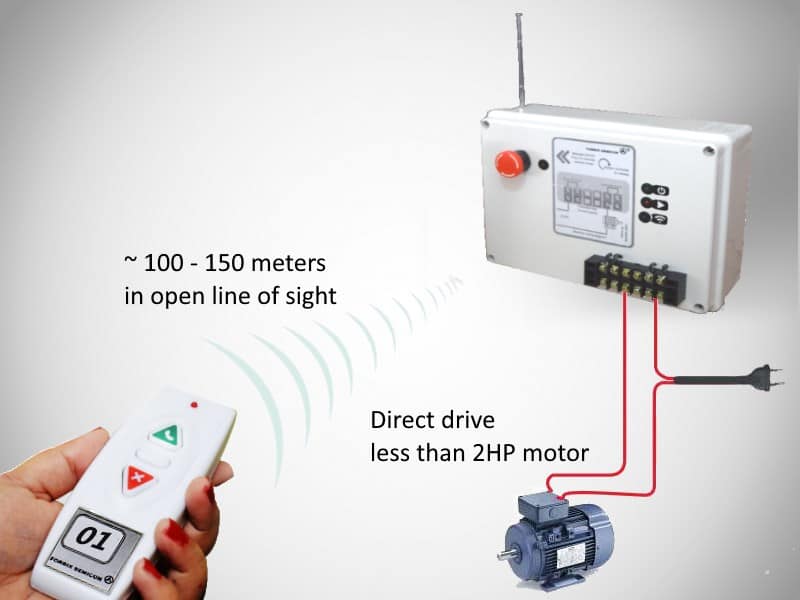

Short Range Direct Drive Motor Control

Model: FBXNPS / FBXDPS
Brand: FORBIX SEMICON®
Range: 100-150m
  • Remote control to turn ON/OFF the motor pump
  • Range: 20-30 meters indoors, 100-120m outdoors
  • 1 relay contactor points for series connection
  • 30 Amps @ 220VAC potential free contactor points output
  • Advisable to connect load not more than 1-1.8KW
  • External 12volt supply provided to power up receiver
  • Manual operation possible with RED button
  • Receiver directly drives motor through 30Amps internal relay
Applications: Direct motor pump control for small capacity motors, agricultural irrigation, residential water supply

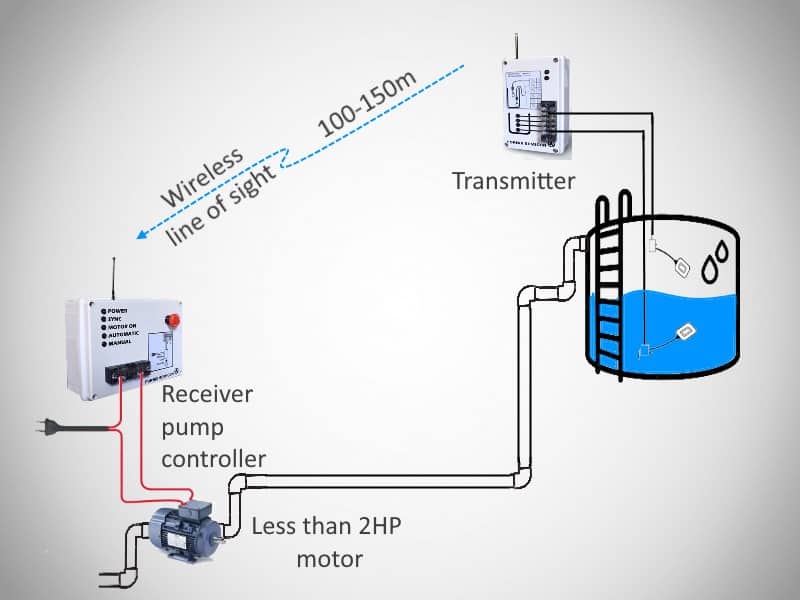

Automatic Water Level Controller
Automatic Controller 1 Automatic Controller 2

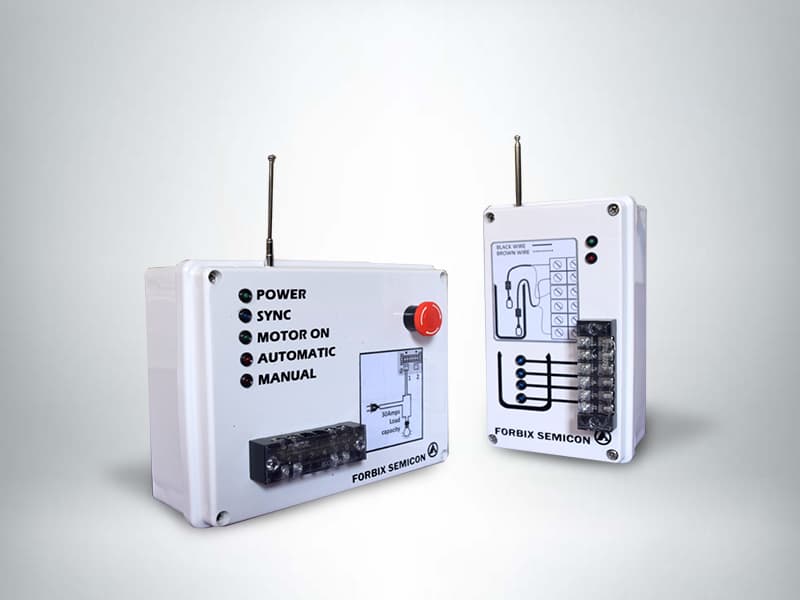

Automatic Water Level Controller

Model: FBXNAS / FBXDAS
Brand: FORBIX SEMICON®
Range: 100-150m
  • Transmitter monitors water level in tank
  • Keeps informing receiver at regular intervals
  • Automatic pump start when tank is empty
  • Automatic pump stop when tank is full
  • Receiver decides pump on/off based on water level
  • Continuous monitoring and control process
  • Upper and lower water mark detection
Applications: Automatic water tank filling systems, overhead tank management, residential and commercial water supply automation
Motor Forward Reverse Control
Forward Reverse Motor

Motor Forward Reverse Control

Model: FBXFRC
Brand: FORBIX SEMICON®
Range: 100-150m, AC/DC Compatible
  • Wireless RF Remote Control for direction control
  • Range: 100-150m outdoors, 30-40m indoors
  • Compatible with both AC motors (230VAC) and DC motors
  • Suitable for motors up to 2 HP power rating
  • 30-ampere relays handling up to 230VAC
  • Robust and reliable for driving small and medium motors
  • Applications: conveyor belts, gate mechanisms, hoists
Applications: Conveyor systems, automated gates, hoisting equipment, reversible motor applications

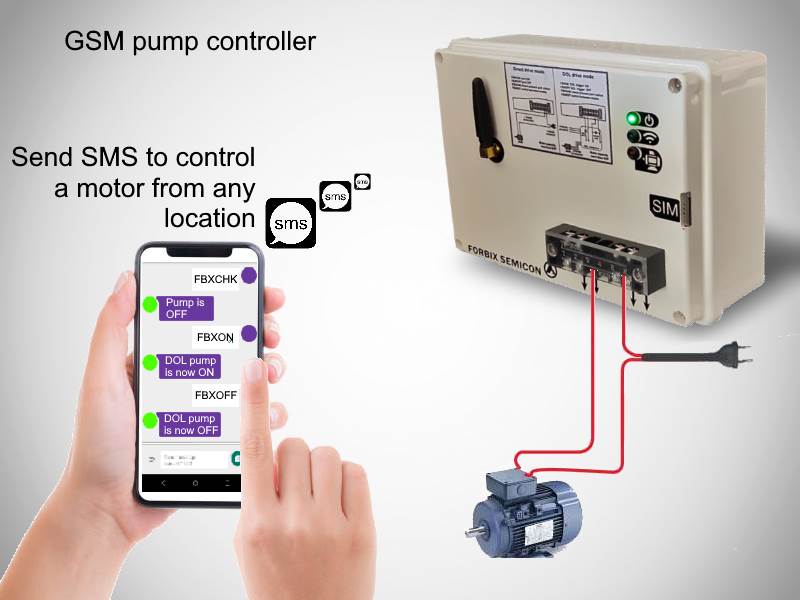

GSM SMS Pump Controller
GSM Pump Controller

GSM SMS Pump Controller

Model: FBXBG1
Brand: FORBIX SEMICON®
Unlimited Range via GSM Network
  • Control motor pump from any distance via SMS
  • Works on GSM technology, bounded by network availability
  • Supports both DOL starter (more than 2HP) and direct drive (less than 2HP)
  • No prior configuration needed
  • SMS commands: Start motor, Stop motor, Check status
  • Acknowledgement SMS sent back to user
  • Real-time feedback and transparency
  • 12 volt power supply operation
Applications: Remote agricultural irrigation, distant water supply management, industrial pump monitoring

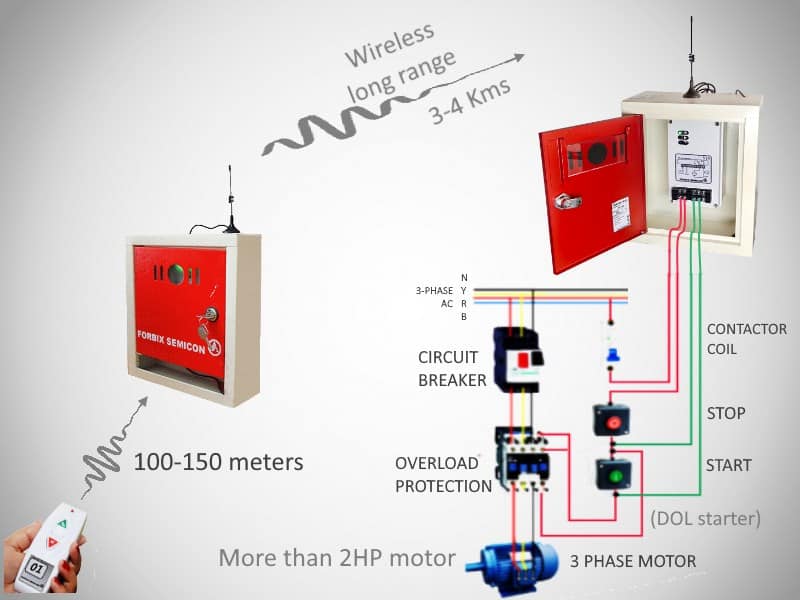

Long Range Wireless Pump Control
Long Range Controller

Long Range Wireless Pump Control

Model: FBXDAL
Brand: FORBIX SEMICON®
Range: 3-4 Kilometers
  • Remarkable signal range of 3 to 4 kilometers
  • Handheld remote control triggers transmitter unit
  • Advanced RF communication technology
  • Robust signal transmission in challenging terrains
  • Receiver positioned near motor pump
  • Controls motor operations: start, stop, adjust settings
  • Efficient for agricultural and industrial applications
Applications: Long-distance agricultural irrigation, remote industrial sites, distant water supply systems

Salient Features of Motor Control Solutions

  • Complete wireless solution
  • No wiring, No installation, No future maintenance
  • Range from 100m to 4Km depending on model
  • Supports both direct drive and DOL starter systems
  • Compatible with AC and DC motors
  • GSM-based unlimited range control available
  • Plug n play units
  • CE certified equipment
  • Motor capacity handling up to industrial grade
  • Automatic water level management
  • Forward/reverse motor control capability
  • SMS acknowledgment for GSM models
  • Cost effective solution
  • Signals can pass through obstacles
  • Manual override options available
  • 12V/220V power supply options

How Wireless Motor Control Works

touch_app

User presses remote control

to start/stop motor or change direction

broadcast_on_personal

RF signal transmits wirelessly

from the remote controller

memory

Receiver unit processes signal

and activates relay controls

settings

Motor responds accordingly

starts, stops, or changes direction

water_drop

Water pump operates

or motor function executes

check_circle

Feedback confirmation

via indicator or SMS (GSM models)

Key Features & Specifications

Signal Range

Short: 100-150m, Long: 3-4Km, GSM: Unlimited

Motor Capacity

Direct drive: less than 2HP, DOL: more than 2HP

Power Supply

12VDC / 220VAC adapter

Relay Capacity

30 Amps @ 220VAC

Motor Types

AC/DC compatible, Forward/Reverse

Control Methods

RF Remote, GSM SMS, Automatic Level

Applications & Use Cases

eco

Agricultural Irrigation

Remote water pump control for crop irrigation and farming operations

home

Residential Water Supply

Automatic and remote control of domestic water pumps and tanks

factory

Industrial Applications

Motor control for conveyor systems, manufacturing processes

water

Water Management

Automated water level control and pumping systems
