How does the wireless nurse call system work without any wiring?

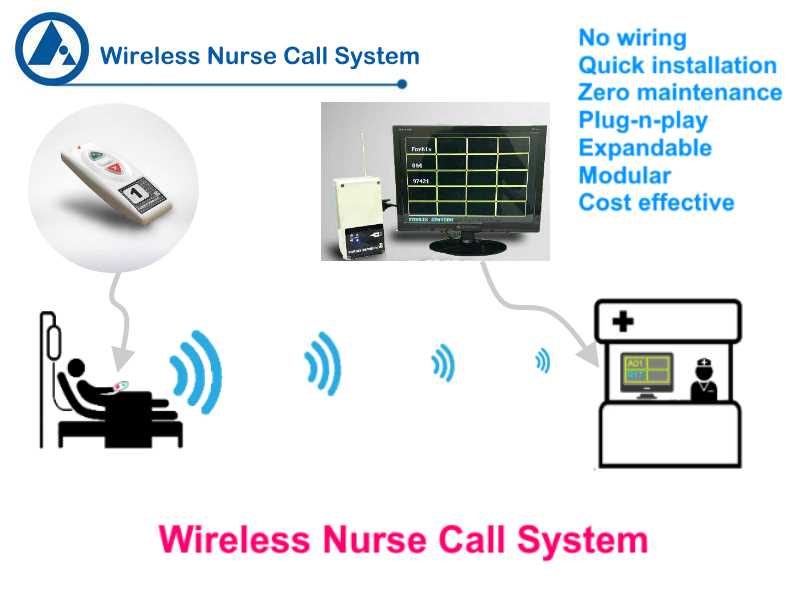

Each patient receives a wireless remote controller that communicates via RF (radio frequency) signals. When pressed, the signal travels wirelessly to reach the nurse station display. The LCD monitor instantly shows the room or bed number that triggered the call, along with an audible alert. No cables run between patient rooms and the nurse station — you simply place the remotes at bedsides and power on the central display.

What happens if the signal cannot reach from a distant room?

For large facilities or multi-story buildings, signal repeater boosters can extend coverage. A single repeater can relay signals across an entire floor or wing. In practice, the base system covers 30-40 meters indoors through walls; adding repeaters eliminates dead zones and allows coverage for facilities with multiple buildings.

Can I customize room names on the display?

Yes, the system includes a built-in WiFi module that allows you to program personalized alpha-numeric names for each room (e.g., "Room 101", "ICU-A", "Ward-3"). You can update room names and system settings wirelessly through a web interface, and the settings are saved in internal memory with auto-restore after power cycles.

What type of monitor is required for the display?

The receiver unit has a VGA female connector and is compatible with any standard VGA monitor. The monitor is available separately, allowing you to choose the size and specifications that best fit your facility's needs.

How many beds can this system support?

This system is designed for 10 beds and comes with 10 wireless remote controllers. However, the system is expandable and can be upgraded to support additional beds. Contact us for custom requirements if you need to accommodate more than 10 beds.

Wireless Nurse Call Remote and Station LCD Monitor Display

▶ Watch Product Demo

10-Bed Wireless Nurse Call System | FORBIX SEMICON®

Name: 10-Bed Wireless Nurse Call System
Brand: FORBIX SEMICON®
Price: 38500 INR
Availability: InStock

Advanced Healthcare Communication System with LCD Monitor Display for Hospitals and Care Facilities

Model: FBXWNCS10-LCD

Brand: FORBIX SEMICON®

₹51,200 ₹38,500

In Stock Qty: 10 nos. MOQ: 1 set

View Cart

10-Bed Wireless Nurse Call System Specifications & Components

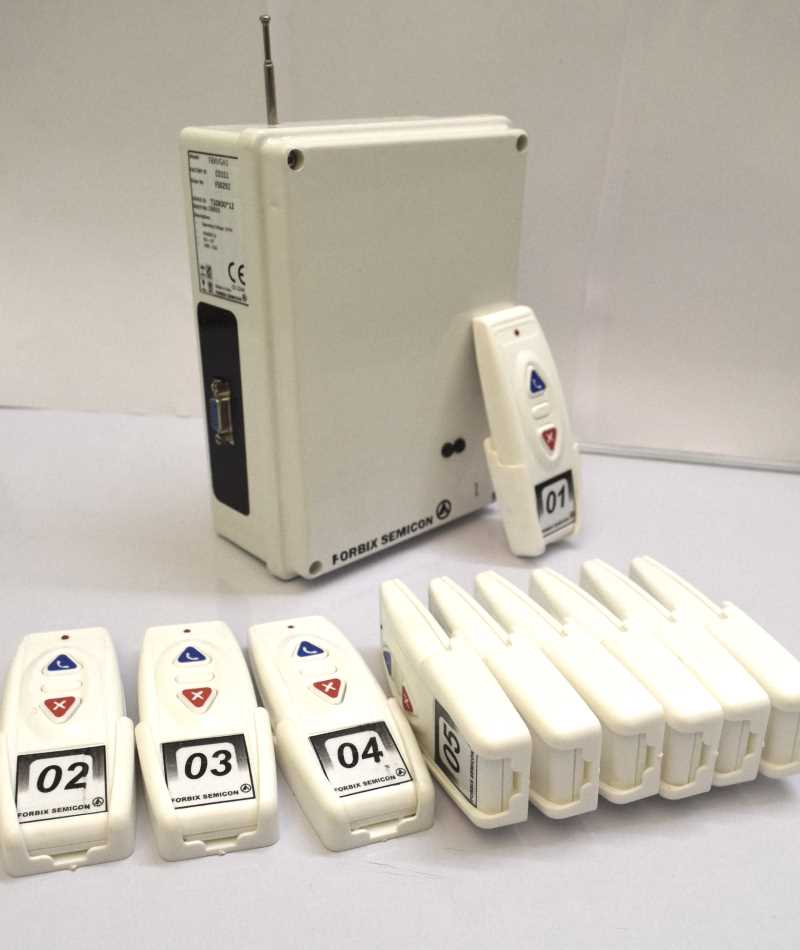

Set Contains:

10 nos. remote controllers (with A23 battery)
1 no. receiver with VGA female connector
1 no. 110-240VAC to 12VDC adapter

Wireless Nurse Call System Features for Hospitals & Care Facilities

Features:

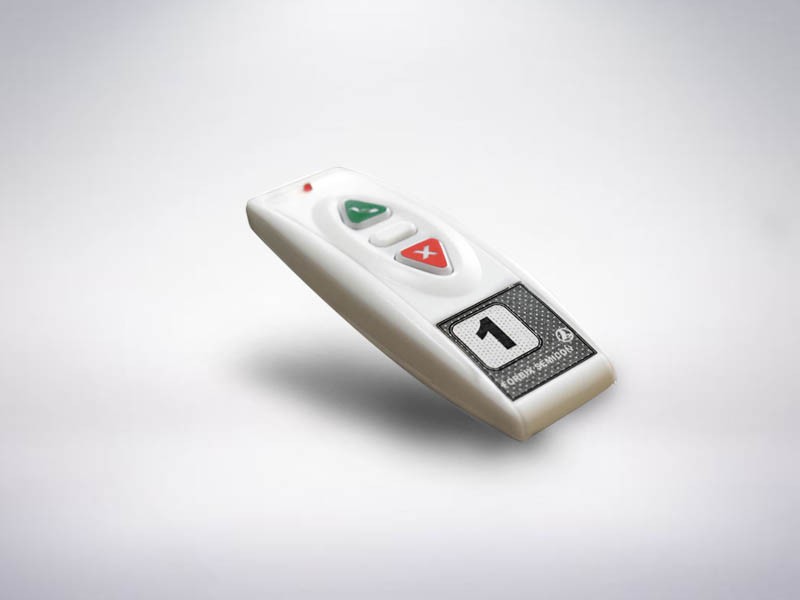

Complete Set for 10 Beds: Individual RF wireless remote controller for each bed, ensuring patient comfort and immediate access to care
Smart Display System: Advanced receiver unit with customizable LCD display for clear visual alerts
Customizable Room Identity: Program personalized alpha-numeric names for each room (e.g., "Room 101", "ICU-A", "Ward-3")
WiFi Configuration: Built-in WiFi module for easy room number updates and system configuration
Memory Backup: Internal memory for saving room settings - auto-restore after power cycles
Remote Management: Update room names and system settings wirelessly through web interface
Professional Installation Ready: Includes high-quality 12V DC power adapter and all necessary components
Easy to Install: No wiring between beds and nurse station - fully wireless operation
Reliable Technology: Latest RF wireless technology ensures consistent and reliable communication
Expandable System: Can be upgraded for additional beds (contact for custom requirements)

Additional Offerings:

Technical Document (PDF)

1-Year Warranty

Installation Guide Included

Compatible with any standard VGA monitor (available separately)
