How does the wireless traffic light controller work?

The system consists of 3 traffic light heads (red, amber, green) with bright LEDs, a wireless receiver/controller unit, and a remote transmitter. The remote sends RF signals to the receiver, which controls the traffic lights. You can operate the lights from up to 120 meters away without any physical wiring between the remote and the lights.

What are the two control modes available?

Option 1: Sequential mode where the top button cycles Green → Amber → Red, the bottom button reverses (Red → Amber → Green), and the middle button activates amber blinking. Option 2: Direct control where top button = RED, middle button = AMBER, and bottom button = GREEN. You can choose the mode that best suits your application.

What is the wireless control range?

The typical open-area range is 100-120 meters. Actual range depends on site conditions, obstacles, and environmental factors. For larger installations or areas with obstructions, the range may be reduced, but this distance is usually sufficient for most traffic control applications.

Is the system weather-resistant for outdoor use?

Yes, the receiver comes in an IP65-grade ABS plastic enclosure, which provides protection against dust and water. For extra weather protection in harsh environments, an optional metal housing is available. The traffic light heads are also designed for outdoor use with weather-resistant construction.

What power supply is required?

The system operates on 12VDC power. A 220VAC to 12VDC adapter is included with the system, so you can plug it into standard wall outlets. The receiver and all three traffic light heads are powered through this single adapter.

FORBIX SEMICON Remote Traffic Light Controller — front view

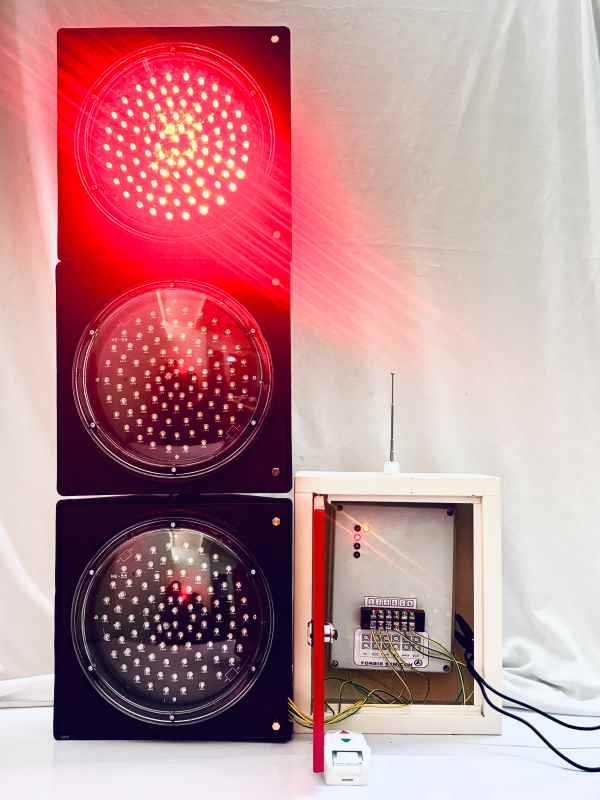

FORBIX SEMICON Wireless Traffic Light Controller Red Light

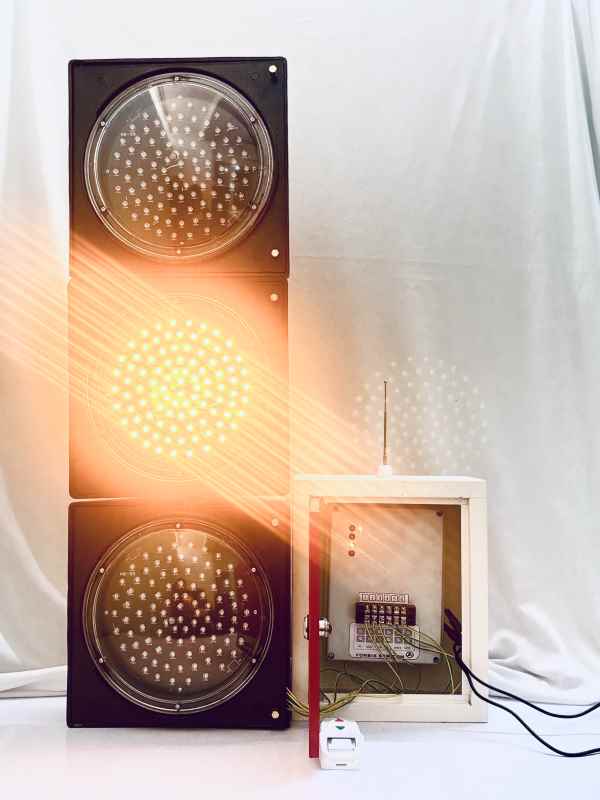

FORBIX SEMICON Wireless Traffic Light Controller Amber Blinking Light

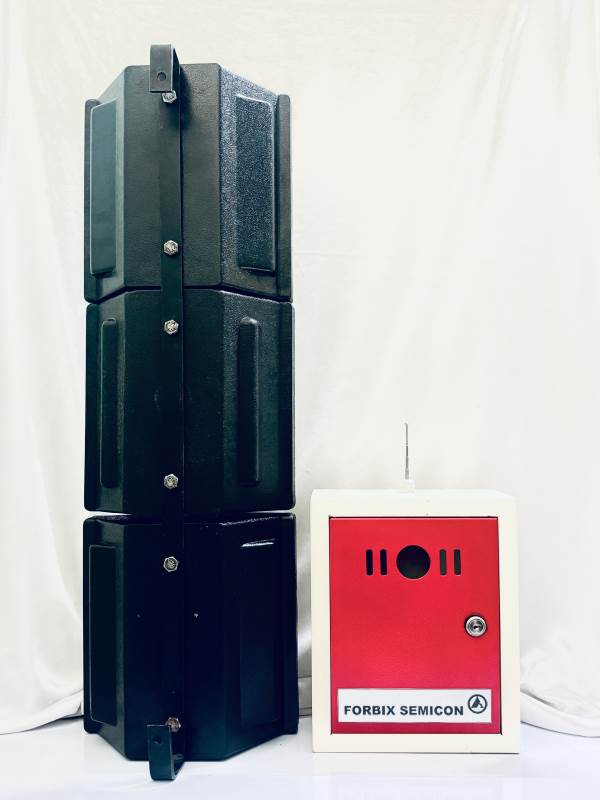

Traffic Lights Back View Mounting and Wiring

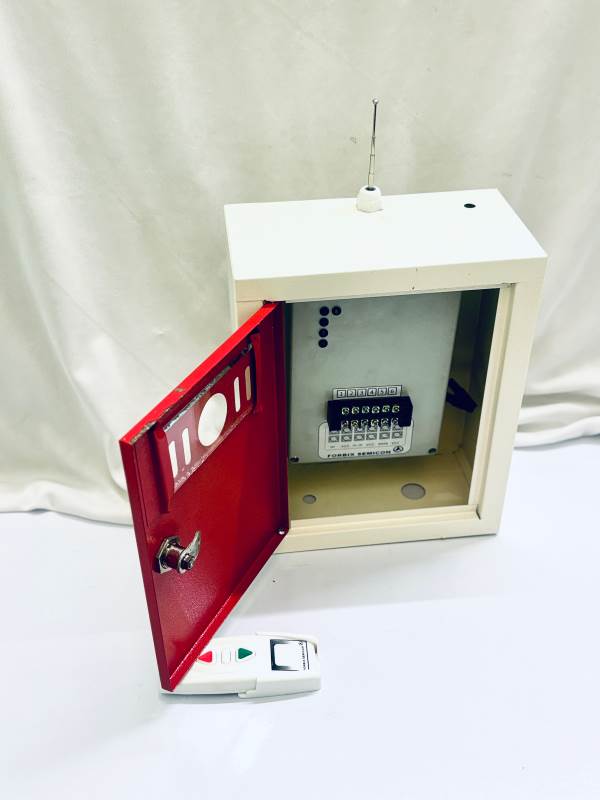

FORBIX SEMICON Wireless Traffic Lights Controller Set

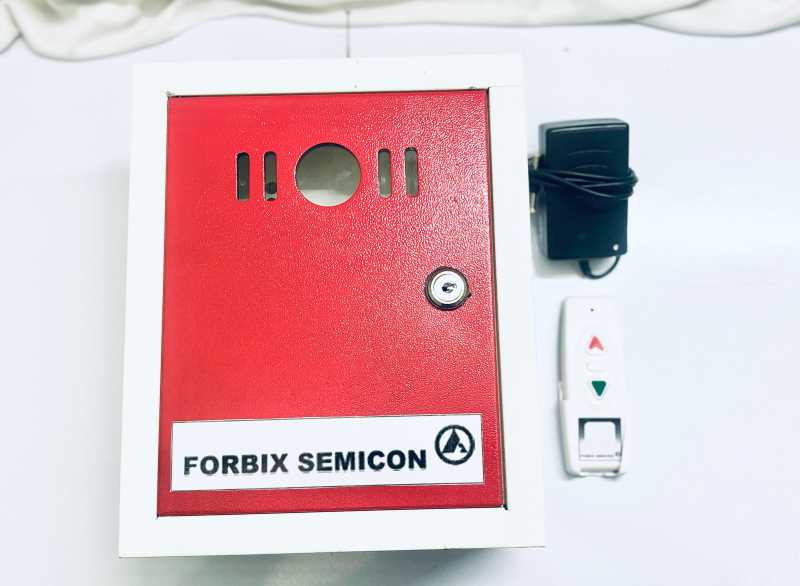

FORBIX SEMICON Wireless Traffic Lights Controller with Remote Transmitter

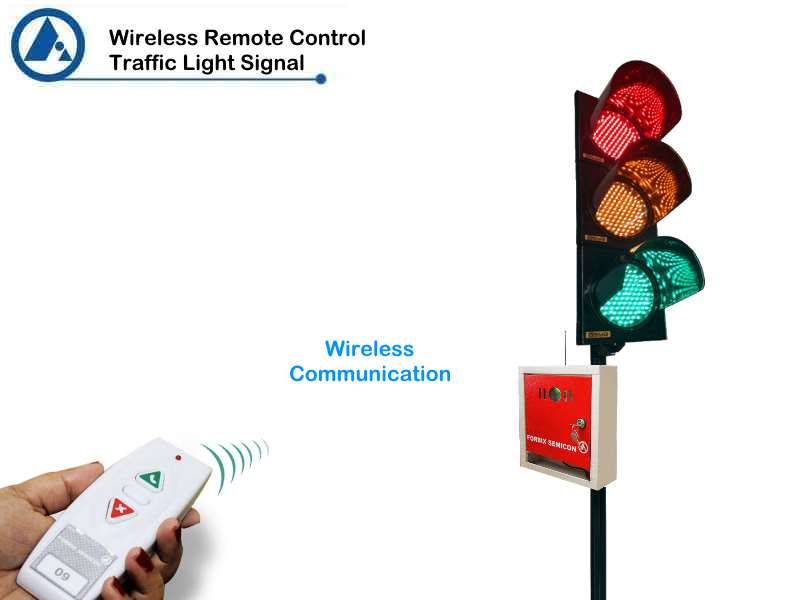

FORBIX SEMICON Wireless Traffic Lights Controller Explanation

▶ Watch Product Demo

Wireless Remote Traffic Light Controller — 200mm LED | FORBIX SEMICON®

Name: Wireless Remote Traffic Light Controller (200mm LEDs)
Brand: FORBIX SEMICON®
Price: 48750 INR
Availability: InStock

200mm visored LED traffic lights with remote control (100–120m), IP65 receiver and 12VDC operation

Model: FBXTLC01A

Brand: FORBIX SEMICON®

₹54,850 ₹48,750

In Stock Qty: 3 nos. MOQ: 1 set

View Cart

Wireless Remote Traffic Light Controller System Specifications

Set Contains:

3 x 200mm traffic light heads with visor and bright LED modules (top/middle/bottom)
1 x wireless receiver/controller unit (IP65 ABS enclosure)
1 x wireless remote transmitter (battery included)
220VAC → 12VDC adapter (supplied) and mounting hardware

Wireless Traffic Light Control Features for Flexible Signal Management

Features:

200mm traffic light heads with deep visor and bright LED modules for excellent visibility in daylight
Remote control range: 100–120 meters in open area (typical), suitable for factory yards and large premises
Two selectable operation modes: Mode A - Top button cycles Green → Amber → Red; Bottom button cycles Red → Amber → Green; Middle button enables Amber blinking. Mode B - Direct control: Top = RED, Middle = AMBER, Bottom = GREEN
Receiver and traffic lights operate on 12VDC (220VAC→12VDC adapter supplied with the set)
Receiver housed in IP65-grade ABS plastic enclosure for outdoor use; optional metallic housing available for added protection
Simple installation and standard wiring to LED modules; mounting hardware included
Expandable: add extra remote transmitters or multiple receiver sets for larger installations

Additional Offerings:

Free Technical Support

1-Year Warranty

Installation Guide Included

All Accessories Included
