What is a nurse station console LCD monitor?

A centralized station receiver with an LCD or VGA monitor that displays real-time patient call alerts, room/bed numbers, and timestamps. It is the main display unit at the nurse station for nurse call systems.

Can the nurse station console work without a computer?

Yes. The console connects directly to a VGA monitor via its VGA output, so no computer is required. It runs on 220V AC or 12V DC adapter.

How is the nurse station console configured?

Settings are configured via WiFi. You can set room/bed numbers, display themes (Preloaded, Appearing, Only Numbers), and connect to an existing WiFi network.

How many calls can the nurse station display show at once?

The display shows up to 20 numbers at a time in a 5×4 matrix, with configurable alpha-numeric room and bed identifiers.

Does the nurse station console have a real-time clock?

Yes. It has an inbuilt RTC (Real-Time Clock) for accurate timestamp logging of all patient calls, useful for reporting and response time analysis.

Nurse Call Receiver Station LCD Monitor, FORBIX SEMICON®

Name: Nurse Station Console LCD Monitor
Brand: FORBIX SEMICON®
Rating: 4.8 (24 reviews)

Experience next-generation nurse station console technology designed for modern healthcare facilities. Our centralized station receiver with LCD monitor ensures efficient monitoring of patient calls. The real-time alerts improves response coordination and healthcare staff efficiency. Perfect for hospitals, nursing homes, and medical centers.

Nurse Station Console LCD Monitor Documentation

Explore comprehensive resources including product demonstrations, technical specifications, and detailed documentation. Our centralized station design ensures efficient monitoring and seamless operation. In addition with WiFi configuration capabilities for customized deployment.

Back to Nurse Call System Watch Demo Video Technical Specification

Nurse station console receiver with LCD monitor. This is a centralized receiver, WiFi configuration, VGA output and multiple display themes. The monitor shows real-time call alerts.

Key features of Nurse Station Receiver

Centralized station receiver with LCD or VGA monitor
It shows real-time patient call alerts and room/bed numbers
WiFi configuration for settings; direct VGA connection to monitor—no computer required.
3 display themes: Preloaded, Appearing, Only Numbers; 5×4 matrix shows up to 20 numbers.
Inbuilt RTC for timestamps
Runs on 220V AC / 12V DC power supply
Supports WiFi 802.11 b/g/n for configuration change and display replication

FORBIX SEMICON® Nurse Call Receiver Station

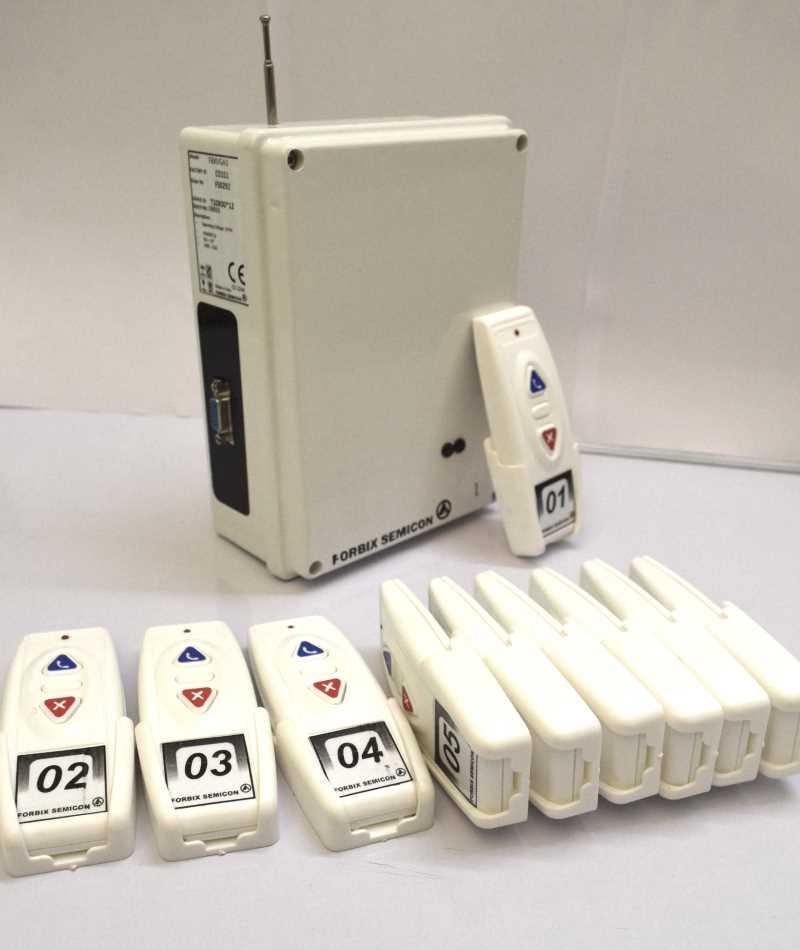

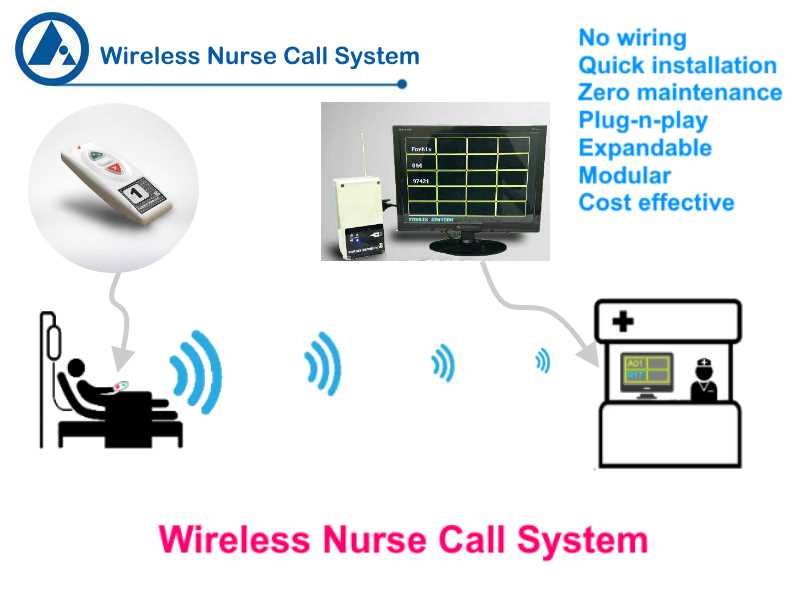

FORBIX SEMICON® Wireless Nurse Call System

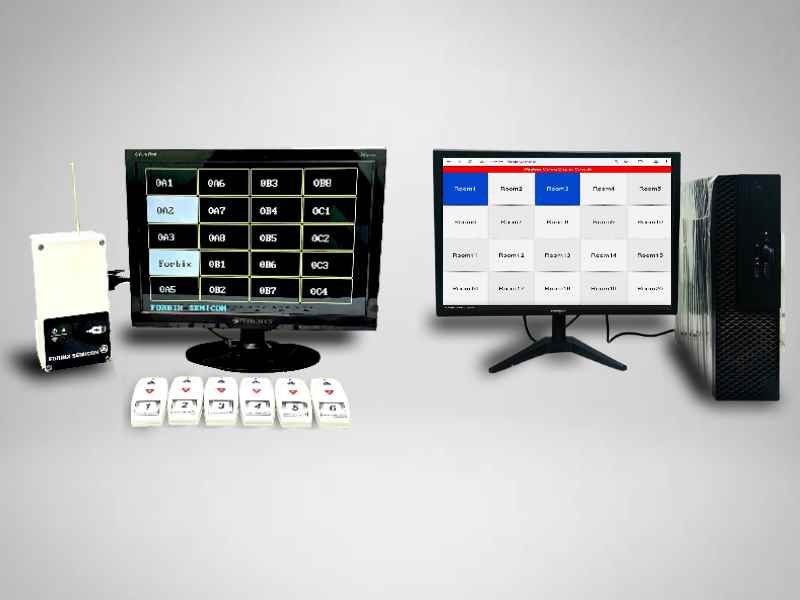

FORBIX SEMICON® Nurse Station Console Display Ready

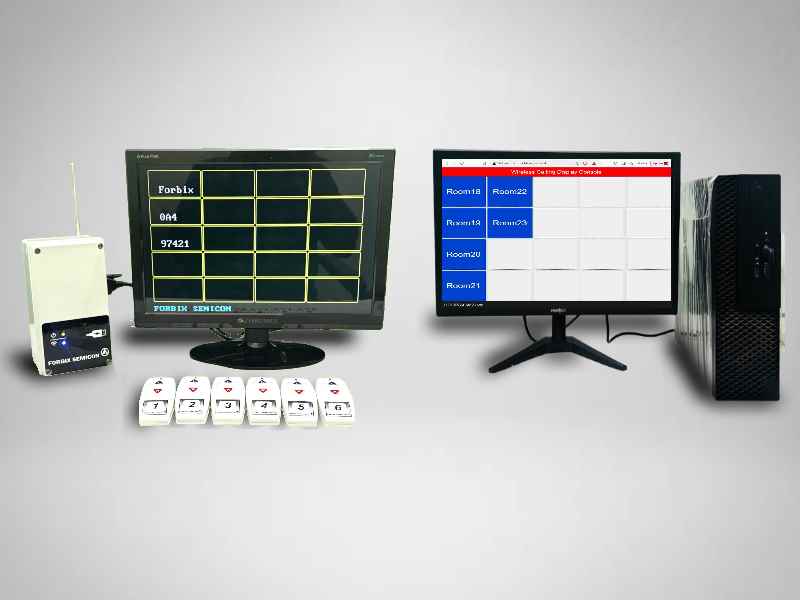

FORBIX SEMICON® Nurse Station Console Display Active

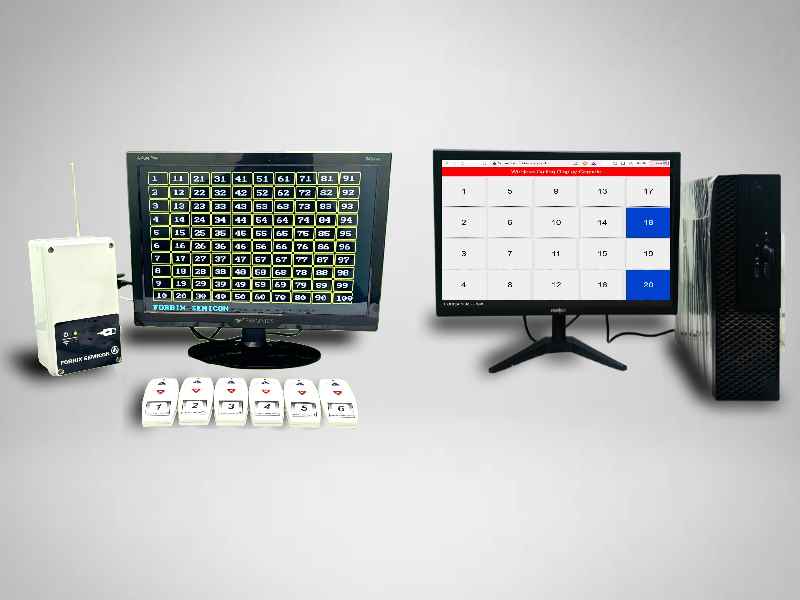

FORBIX SEMICON® Nurse Station Display Numbers

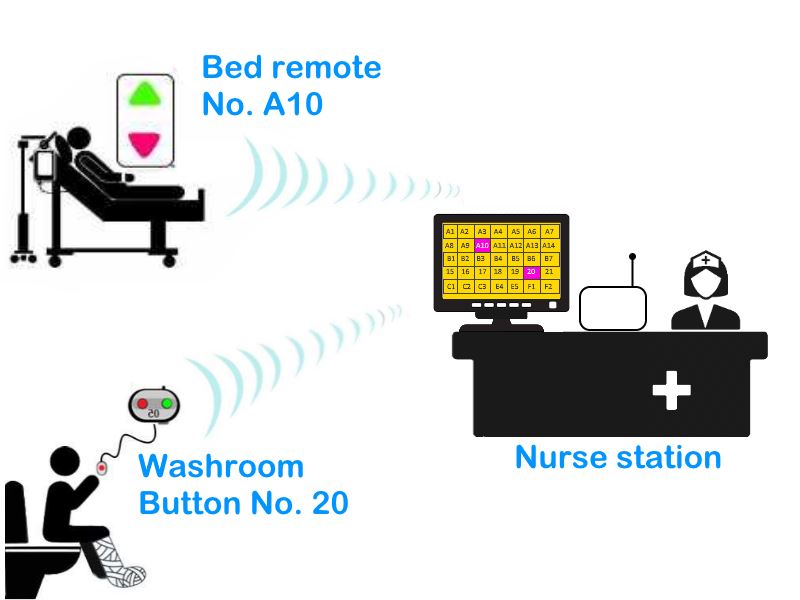

FORBIX SEMICON® Nurse Station LCD Display

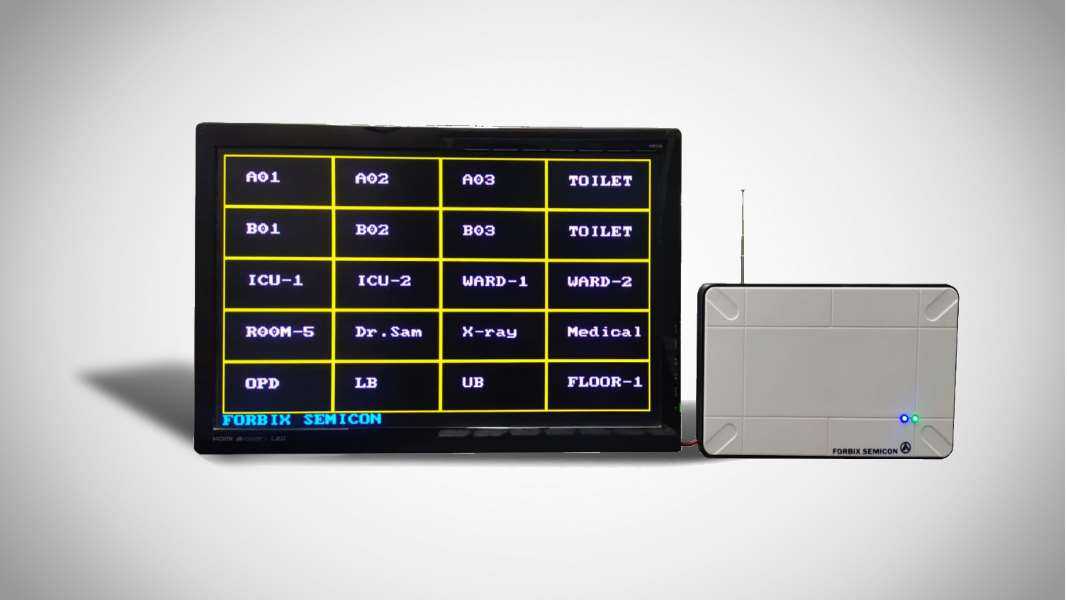

FORBIX SEMICON® LCD Monitor Nurse Station

Key Features

Centralized station receiver with LCD monitor
WiFi control to configure settings
Direct VGA monitor connection (no computer)
3 themes: Preloaded / Appearing / Only Numbers
Shows 20 numbers in a 5×4 matrix
Configurable alpha-numeric room and bed IDs
Inbuilt RTC (Real-Time Clock)
Runs on 220AC/12VDC adapter power supply
VGA output for external monitor connection
Shows real-time call alerts and patient locations
WiFi 802.11 b/g/n support
Extend display to another computer via WiFi
Connect via hotspot AP or existing WiFi network

Technical Specifications

Model: FBXLV01
Receiver indicator sensitivity: -112 dBm
Operating frequency: 380–480 MHz
Signal hop mechanism across preset frequencies
Modulation type: GFSK
Radio IC: CC1100 (Chipcon/TI), sub-GHz
Packet error correction: FEC
Adapter: 110–220VAC to 12VDC (supplied)
Supports 12V external battery (hours vary)
Antenna: PCB / coil / metal (as per site)
Beep range: ~10–12 m (around 85 dB)
Enclosure: ABS plastic, white
Size: 200 × 150 × 70 mm
Weight: ~220 g
Operating temp: 0°C to 40°C
Storage temp: 5°C to 25°C
Humidity: 5% RH to 95% RH

Web Console and Parallel Monitor

The console receiver supports parallel monitor screens. Called bed numbers can highlight in a blue box. In addition, the web page works on phone, tablet, or PC.

Parallel monitor screen

Multi-screen output for call alerts
Default names: Room01 to Room20
Custom naming via WiFi settings
Responsive web page for parallel monitors

Web server access

Hotspot interface: 192.168.4.1
Local network: http://forbix-wncs.local
Hotspot WiFi name: FORBIX_DISPLAY

Web-based management

Open the settings page in any browser
Hotspot settings: http://192.168.4.1/settings
LAN access: http://forbix-wncs.local/
RTC sync or reset from internet or computer time
Program up to 40 bed or call point IDs
Default names: Room01 to Room40
Max 6 characters per ID, such as ICU08
Set admin username and passcode
Backup and restore of unattended call queue

VGA display modes

Mode	Description	Max points	Visual feedback
5×4 Pop-up	Only called numbers appear in a 5×4 grid.	40	Numbers pop up when called.
5×4 Visible	All room numbers are visible.	20	Called numbers highlight in blue.
10×10 Canvas	Full grid 1–100 is visible.	100	Called boxes change color.

Note: The LCD monitor is not part of the package.
