Wireless RF Transmitter & Receiver Systems
Professional wireless RF transmitter and receiver for remote control. In addition, we offer 1–4 channel ISM 380–480 MHz relay systems. Furthermore, 100–120 m range; no wiring between control and load.
What this page covers
At FORBIX SEMICON® we manufatuer wireless RF transmitter and receiver systems. For example, ISM 380–480 MHz, 1–4 channel relay, 100–120 m range. In brief, plain text for accessibility.
Key points
- RF transmitter and receiver; no wiring between control and load.
- ISM 380–480 MHz; 100–120 m range; 1–4 channel options.
- Relay 5A @ 220VAC per channel; 12 V DC for Tx and Rx.
- Use cases: industrial, home, gate, lighting, appliances.
- Models: FBXTR01, FBXTR02, FBXTR03, FBXTR04, and more.
Compare Models at a Glance
Use the table below to compare channels, features, and ideal use. For more detail, see the product catalog.
| Model | Number of Remotes | Key Features | Ideal Use Case |
|---|---|---|---|

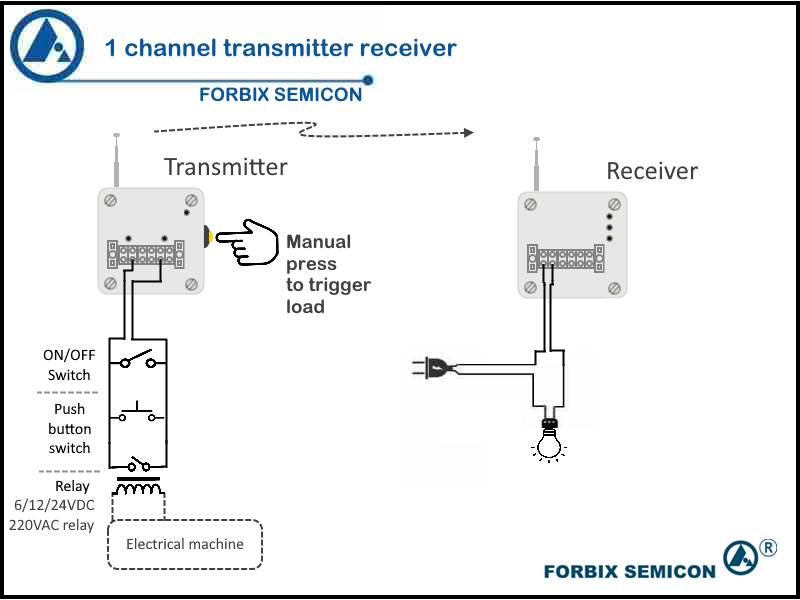

| FBXTR01 | 1 ch | ISM 380–480 MHz, 100–120 m, 5A relay, 12 V DC | Single load, gate, light |

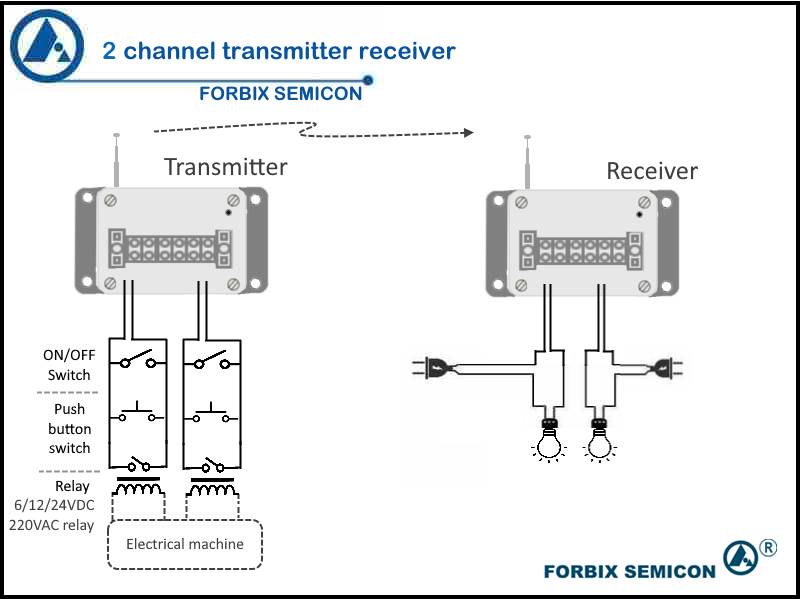

| FBXTR02 | 2 ch | Dual channel, 2× 5A relay, LED per channel | Two loads, lighting |
| FBXTR03 | 3 ch | Three channel, 3× relay, wall-mount | Multi-device control |

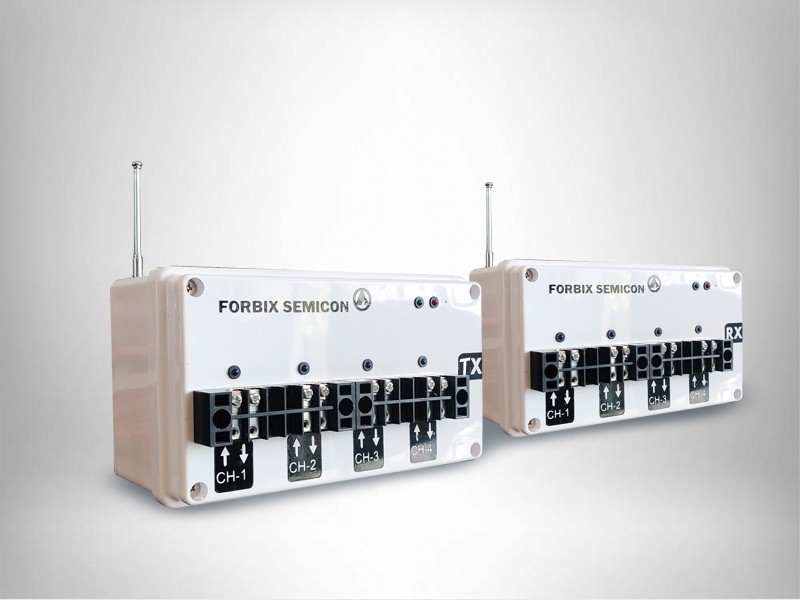

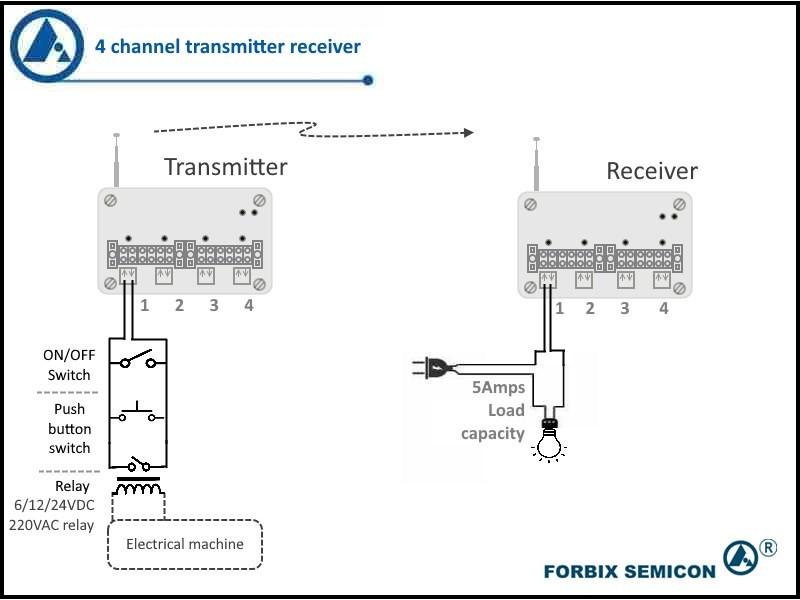

| FBXTR04 | 4 ch | Four button, 4× 5A relay, LED indicators | Complex automation |
| FBXTR04S | 4 ch | Complete 4ch package, 4-button remote | Professional install |
| FBXTR1M | 1 Tx many Rx | One-to-many, handheld receivers | Alerts, notification |
| FBXRRL01 | 1 | Single port relay, battery remote, 5A | Ready-to-use kit |
Product Catalog & Specifications
All models: ISM 380–480 MHz, 100–120 m range, 12 V DC. Relay 5A @ 220VAC per channel where applicable.
| Product Images | Model Number | Key Features |
|---|---|---|
|
FBXTR01
|
|
|
FBXTR02
|
|
|
FBXTR03
|
|
|
|
FBXTR04
|
|
|
|
FBXTR04S
|
|
|
|
FBXTR1M
|
|
|
|
FBXRRL01
|
|
Applications & Use Cases
Industrial Automation
Control motors, pumps, lighting, and equipment remotely. For example, factory and warehouse use. Furthermore, reliable wireless for manufacturing and equipment control.
Home Automation
Wireless control of appliances, lighting, gates, and security. In addition, no complex wiring. Similarly, suitable for existing homes and new installs.
Commercial Applications
Office and retail lighting, gate and access control. As a result, efficient remote control for commercial environments.
Technical Specifications
Communication Specifications
- Frequency: Free ISM band 380-480MHz (license-free operation)
- Operating Range: 100-120 meters in open space
- Transmission Power: Compliant with regulatory standards
- Signal Modulation: GFSK (Frequency Shift Keying)
- Communication Protocol: Reliable wireless data transmission
Power Supply Requirements
- Receiver: 12VDC adapter (included with product)
- Transmitter: 12VDC adapter (included with product)
- Power Consumption: Low power design for energy efficiency
- Standby Power: Minimal power consumption in idle mode
Relay Output Specifications
- Contact Rating: 5A @ 220VAC per relay
- Contact Type: SPDT (Single Pole Double Throw)
- Electrical Isolation: 4000V between coil and contact
- Life Expectancy: 100,000+ operations minimum
- Switching Speed: Fast response time for immediate control
Frequency & Regulatory Compliance
Systems operate in the free ISM band 380–480 MHz. In addition, frequency is set per country rules. Furthermore, we ensure compliance for all customers.
FAQs on Wireless RF Transmitter & Receiver
What is a wireless RF transmitter and receiver?
A system that uses RF to send commands from a transmitter to a receiver. As a result, relays switch. In addition, used for lights, motors, gates; no wiring.
What frequency do FORBIX RF transmitter receivers use?
They use the free ISM band 380–480 MHz. For example, frequency is set per country license-free rules.
What is the range of wireless RF transmitter receiver?
Range is typically 100–120 m in open space. Furthermore, indoor range may be less with walls.
How many channels are available?
We offer 1-, 2-, 3-, and 4-channel systems. In brief, each channel has 5A @ 220VAC relay.
Do transmitter and receiver need wiring between them?
No. Communication is wireless RF. Similarly, both need 12 V DC; no cable between them.
